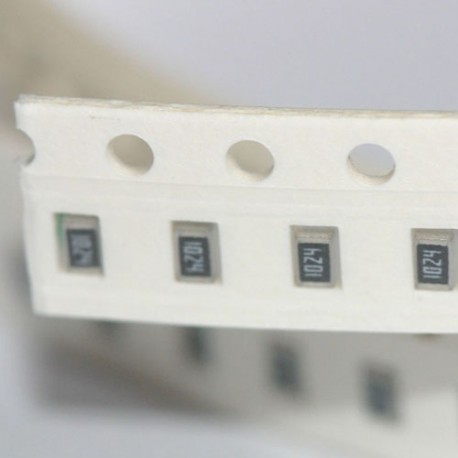

0805-SMD 1% 56 k

Vishay SMD resistor series CRCW0805BC

Thick film resistors in a 0805 SMD housing with a protective overglaze as well as a high stability. They are suitable for commercial applications and have a metal glaze on a high quality ceramic. We offer various types of this Vishay series.

  • rated power: 0,125W (70°C)
  • tolerance: ±1%
  • taped
CRCW080556K0FKTABC, Vishay SMD resistors, 0805 housing, 1%, 0,125W, CRCW0805BC series

0805-SMD 1% 56 k

15663 0805-SMD 1% 56 k CRCW080556K0FKTABC CRCW080556K0FKTABC Vishay SMD resistor series CRCW0805BC. Thick film resistors in a 0805 SMD housing with a protective overglaze as well as a high stability. They are suitable for commercial applications and have a metal glaze on a high quality ceramic. We offer various types of this Vishay series. rated power: 0,125W (70°C) tolerance: ±1% taped

Specifications

manufacturer
Manufacturer's name CRCW080556K0FKTABC

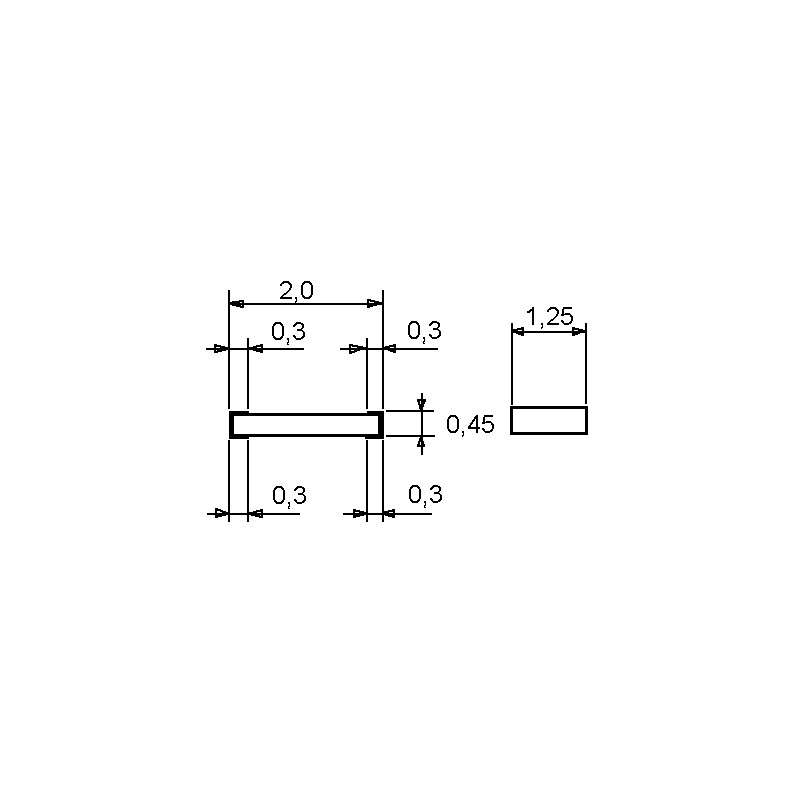

Case 0805
Design taped
Design 0805
Resistance [Ω] 56k
Power [W] 0,125
Tolerance [%] 1
Data Sheet

Unit price

0,0028 €

Stock: 49643
Next incoming goods:
CW 49/2026
25000 units

Further delivery:
CW 10/2027

Minimum order quantity 1 to 4643 units or multiples of 5.000 plus 0 to 4643 .
