T55D687M2R5C0007

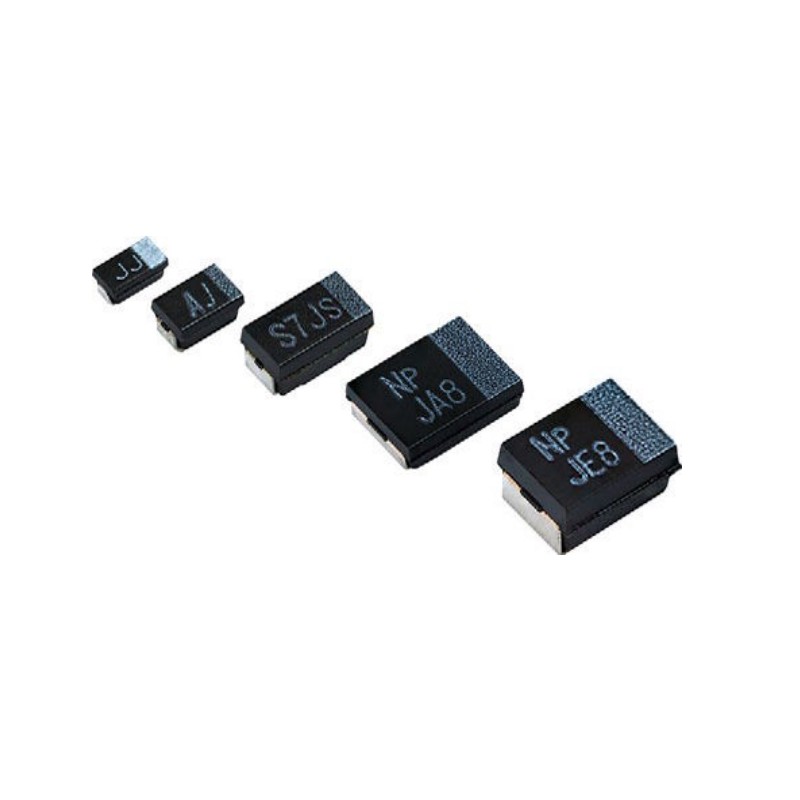

Vishay tantalum capacitor series T55

Halogen-free polymer tantalum capacitors in an SMD housing with an ultra low ESR and a high ripple current capability. These caps are suitable for direct PCB mounting and have no war out effect. They comply with moisture sensivity level 3 and have a long service life. We offer the following types of this Vishay series: T55D687M2R5C0007, T55D108M2R5C0006, T55D477M004C0007, T55D687M004C0006, T55A107M6R3C0045, T55B226M010C0070 and T55D227M010C0007.

  • rated voltage: 2,5 to 10V DC
  • capacity: 22 to 1000µF
  • capacitance tolerance: ±20%
  • operating temperature: -55 to +105°C
  • service life: 2000h (at +105°C)
  • taped

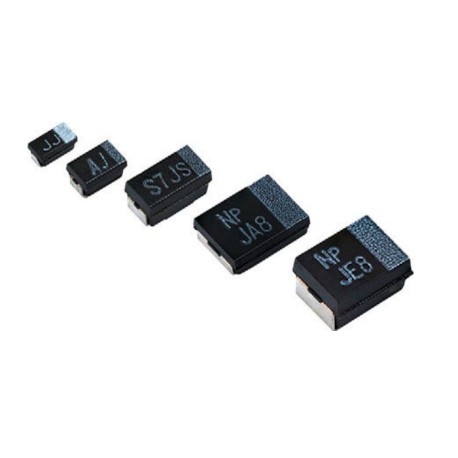

T55D687M2R5C0007, Vishay polymer tantalum capacitors, SMD, vPolyTan, T55 series

T55D687M2R5C0007

245162 T55D687M2R5C0007 T55D687M2R5C0007 Vishay tantalum capacitor series T55. Halogen-free polymer tantalum capacitors in an SMD housing with an ultra low ESR and a high ripple current capability. These caps are suitable for direct PCB mounting and have no war out effect. They comply with moisture sensivity level 3 and have a long service life. We offer the following types of this Vishay series: T55D687M2R5C0007, T55D108M2R5C0006, T55D477M004C0007, T55D687M004C0006, T55A107M6R3C0045, T55B226M010C0070 and T55D227M010C0007. rated voltage: 2,5 to 10V DC capacity: 22 to 1000µF capacitance tolerance: ±20% operating temperature: -55 to +105°C service life: 2000h (at +105°C) taped

Specifications

manufacturer
Manufacturer's name T55D687M2R5C0007
Nominal voltage [V DC] 2,5
Impedance [mΩ] 7
Loss factor at 120Hz, 25°C 10
Capacity [µF] 680
Data Sheet

Unit price

1,42 €

Stock: 500
Further delivery:
CW 34/2024

Minimum order quantity 25 units or
multiples of 25.
