FKP 2 2,5% 630 V 1000 pF

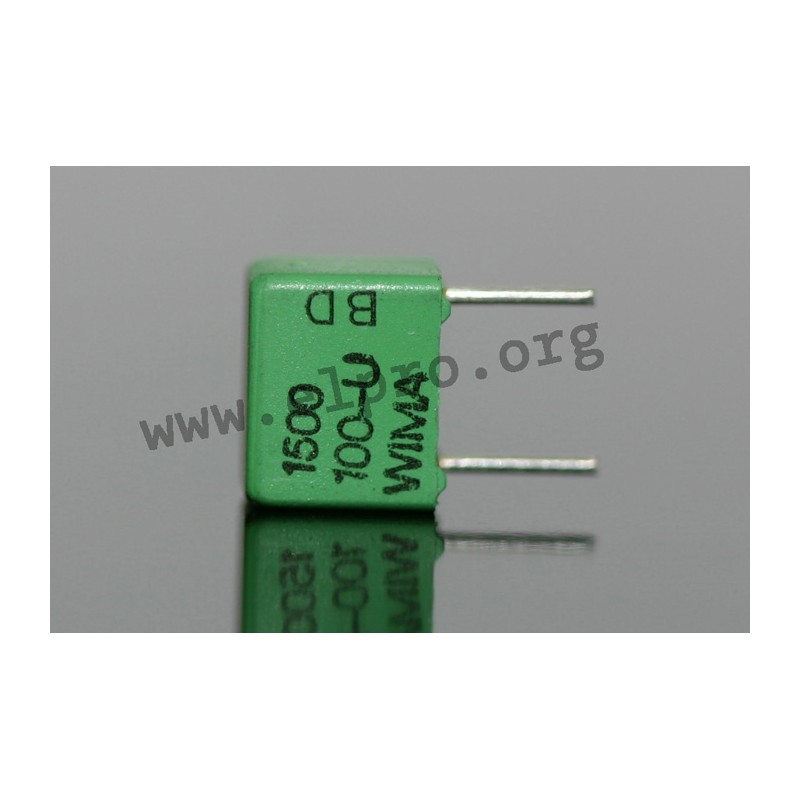

Wima FKP capacitor series FKP 2

Impulse resistant polypropylene film/foil capacitors with a pitch of 5mm. These FKP capacitors are suitable for PCB mounting as well as for applications with a high natural resonant frequency. They can be used as a replacement for Styroflex capacitors in audio/HF applications and have a very low dielectric absorption. We offer the following types of this Wima series: FKP2D002201D00, FKP2D006801D00, FKP2D011501D00, FKP2J011001D00 and FKP2D011001D00HSSD.

  • pitch: 5mm
  • operating temperature: -55 to +100°C
  • bulk

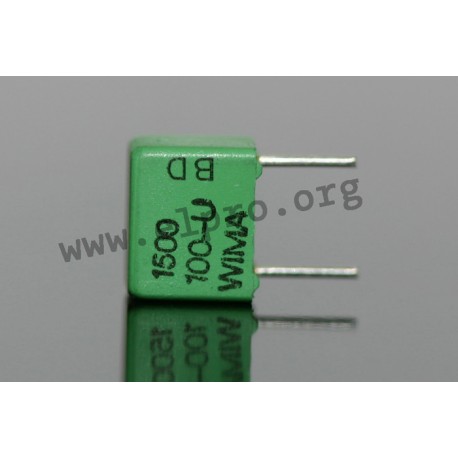

WIMA series FKP 2

FKP 2 2,5% 630 V 1000 pF

9234 FKP 2 2,5% 630 V 1000 pF FKP2J011001D00 FKP2J011001D00 Wima FKP capacitor series FKP 2. Impulse resistant polypropylene film/foil capacitors with a pitch of 5mm. These FKP capacitors are suitable for PCB mounting as well as for applications with a high natural resonant frequency. They can be used as a replacement for Styroflex capacitors in audio/HF applications and have a very low dielectric absorption. We offer the following types of this Wima series: FKP2D002201D00, FKP2D006801D00, FKP2D011501D00, FKP2J011001D00 and FKP2D011001D00HSSD. pitch: 5mm operating temperature: -55 to +100°C bulk

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FKP2J011001D00
Nominal voltage [V] 630
Pitch [mm] 5
Tolerance [%] 2,5
Capacity [pF] 1000
Data Sheet

Unit price

0,12 €

Stock: 44
