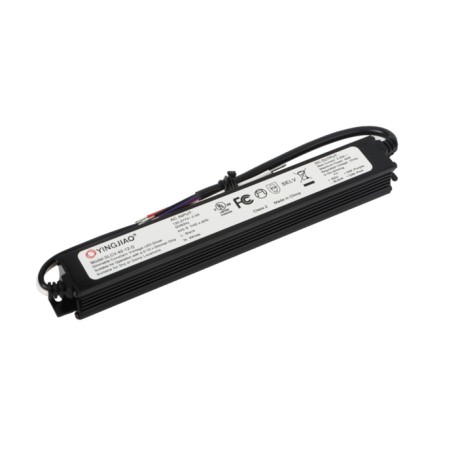

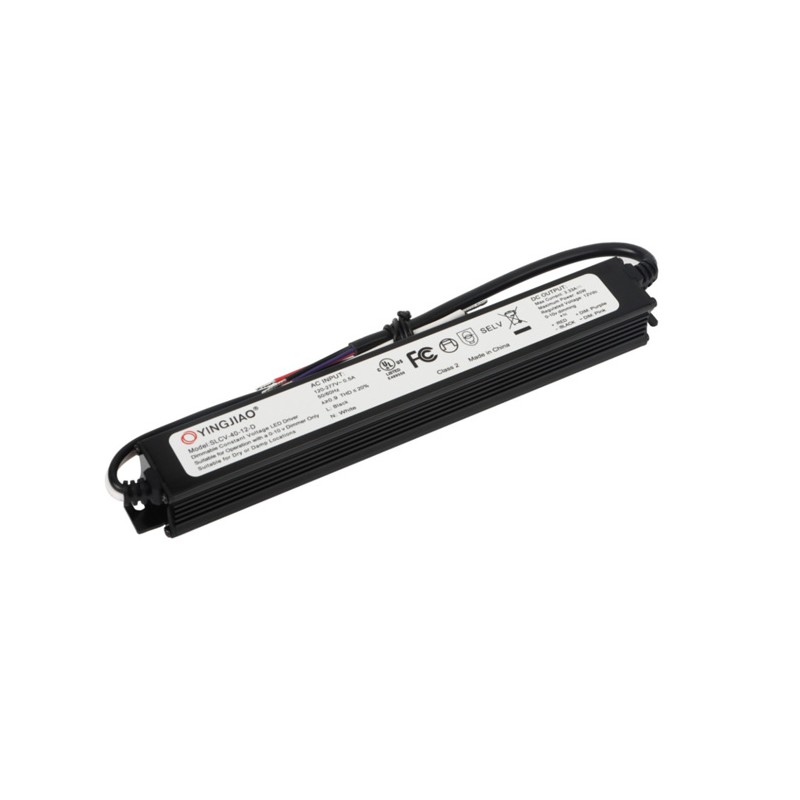

SLCV-40-24E

Yingjiao AC/DC LED power supplies series SLCV-40E

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed metal housing, with 400W and IP44. These devices are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: SLCV-40-12E und SLCV-40-24E.

  • input voltage: 220 to 240V AC
  • input frequency: 47/63Hz
  • operating temperature: -20 to +40°C
SLCV-40-24E, Yingjiao AC/DC LED power supplies, CV, 40W, IP44, SLCV-40E series

SLCV-40-24E

250522 SLCV-40-24E SLCV-40-24E Yingjiao AC/DC LED power supplies series SLCV-40E. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed metal housing, with 400W and IP44. These devices are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: SLCV-40-12E und SLCV-40-24E. input voltage: 220 to 240V AC input frequency: 47/63Hz operating temperature: -20 to +40°C

Specifications

manufacturer
Manufacturer's name SLCV-40-24E
Output voltage [V] 24
Input voltage range [V] 198...264
Efficiency [%] 89
Output current [A] 1,67
Data Sheet

Unit price

18,09 €

Volume discounts

Quantity Unit price
100 + 16,99 €

Stock: 91
Further delivery:
CW 15/2026
