YCL12-1201000

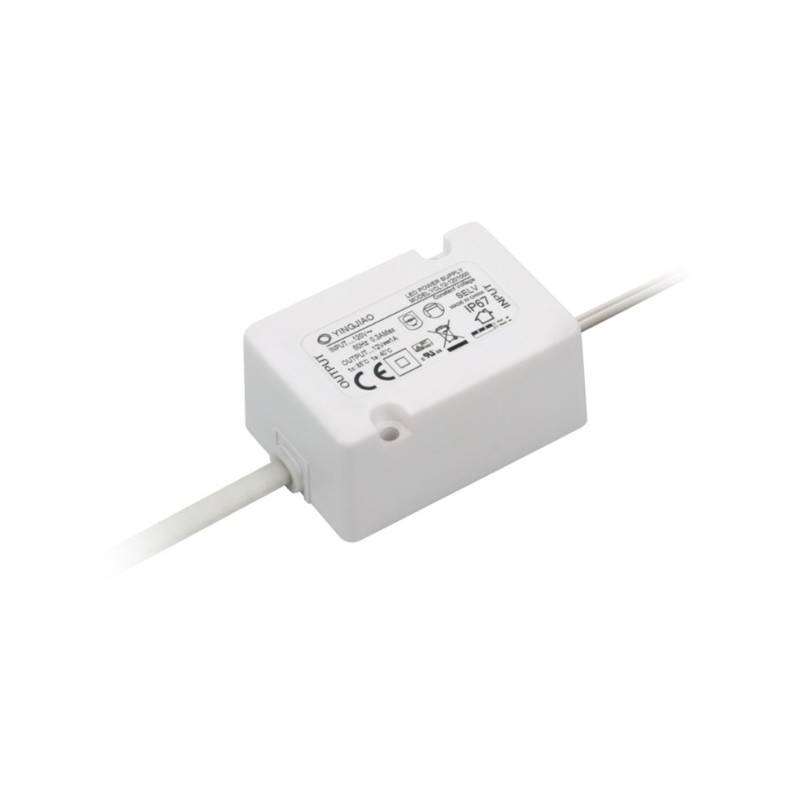

Yingjiao AC/DC LED power supplies series YCL12

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 12W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL12-1201000 and YCL12-2400500.

  • input voltage: 220 to 240V AC
  • input frequency: 50/60Hz
  • operating temperature: -20 to +40°C

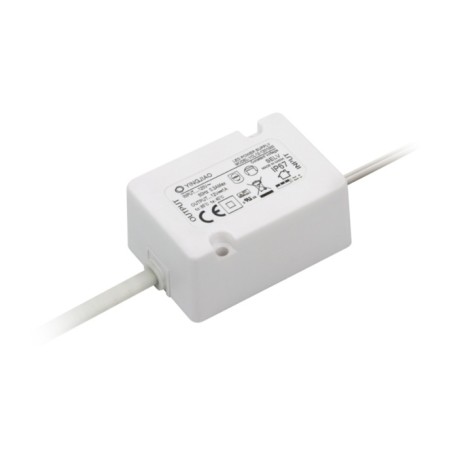

YCL12-1201000, Yingjiao AC/DC LED power supplies, CV, 12W, IP67, YCL12 series

YCL12-1201000

250541 YCL12-1201000 YCL12-1201000 Yingjiao AC/DC LED power supplies series YCL12. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 12W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL12-1201000 and YCL12-2400500. input voltage: 220 to 240V AC input frequency: 50/60Hz operating temperature: -20 to +40°C

Specifications

manufacturer
Manufacturer's name YCL12-1201000
Output voltage [V] 12
Input voltage range [V] 198...264
Efficiency [%] 82
Output current [A] 1
Data Sheet
