YCL40-2401660

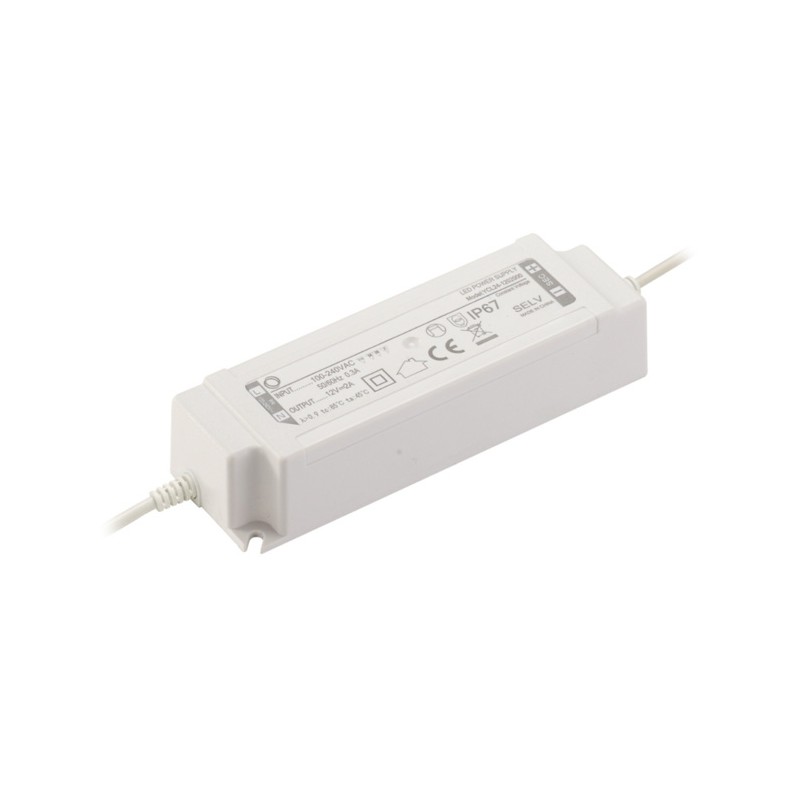

Yingjiao AC/DC LED power supplies series YCL40

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 40W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL40-1203330 and YCL40-2401660.

  • input voltage: 220 to 240V AC
  • input frequency: 50/60Hz
  • operating temperature: -20 to +40°C

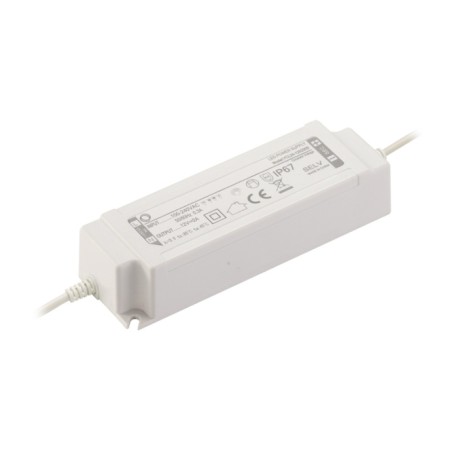

YCL40-2401660, Yingjiao AC/DC LED power supplies, CV, 40W, IP67, YCL40 series

YCL40-2401660

250546 YCL40-2401660 YCL40-2401660 Yingjiao AC/DC LED power supplies series YCL40. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 40W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL40-1203330 and YCL40-2401660. input voltage: 220 to 240V AC input frequency: 50/60Hz operating temperature: -20 to +40°C

Specifications

manufacturer
Manufacturer's name YCL40-2401660
Output voltage [V] 24
Input voltage range [V] 198...264
Efficiency [%] 86
Output current [A] 1,66
Data Sheet

Unit price

9,19 €

Volume discounts

Quantity Unit price
100 + 8,59 €

Stock: 282
Further delivery:
CW 18/2026
