YCL60-2402500

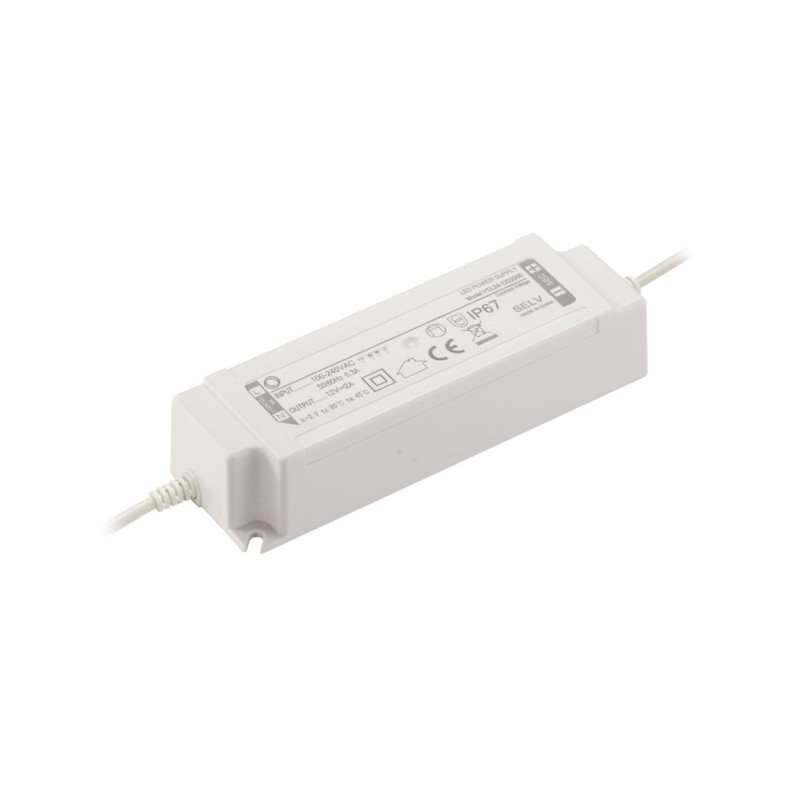

Yingjiao AC/DC LED power supplies series YCL60

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 60W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL60-1205000 and YCL60-2402500.

  • input voltage: 220 to 240V AC
  • input frequency: 50/60Hz
  • operating temperature: -20 to +40°C

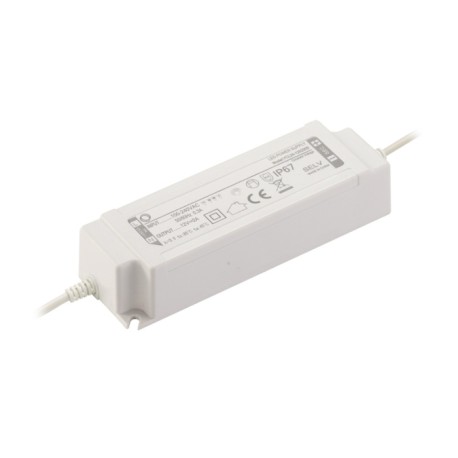

YCL60-2402500, Yingjiao AC/DC LED power supplies, CV, 60W, IP67, YCL60 series

YCL60-2402500

250548 YCL60-2402500 YCL60-2402500 Yingjiao AC/DC LED power supplies series YCL60. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 60W and IP67. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YCL60-1205000 and YCL60-2402500. input voltage: 220 to 240V AC input frequency: 50/60Hz operating temperature: -20 to +40°C

Specifications

manufacturer
Manufacturer's name YCL60-2402500
Output voltage [V] 24
Input voltage range [V] 198...264
Efficiency [%] 88
Output current [A] 2,5
Data Sheet

Unit price

10,69 €

Volume discounts

Quantity Unit price
100 + 9,99 €

Stock: 180
Further delivery:
CW 18/2026
