YS35V-1203000

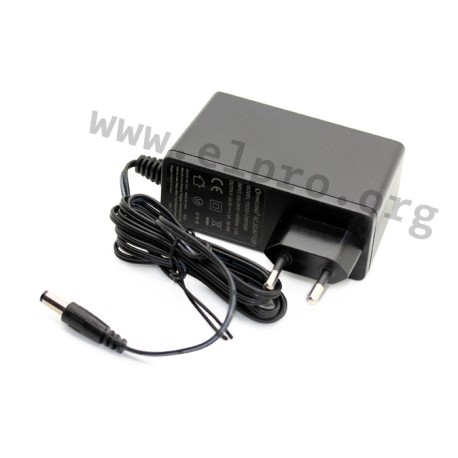

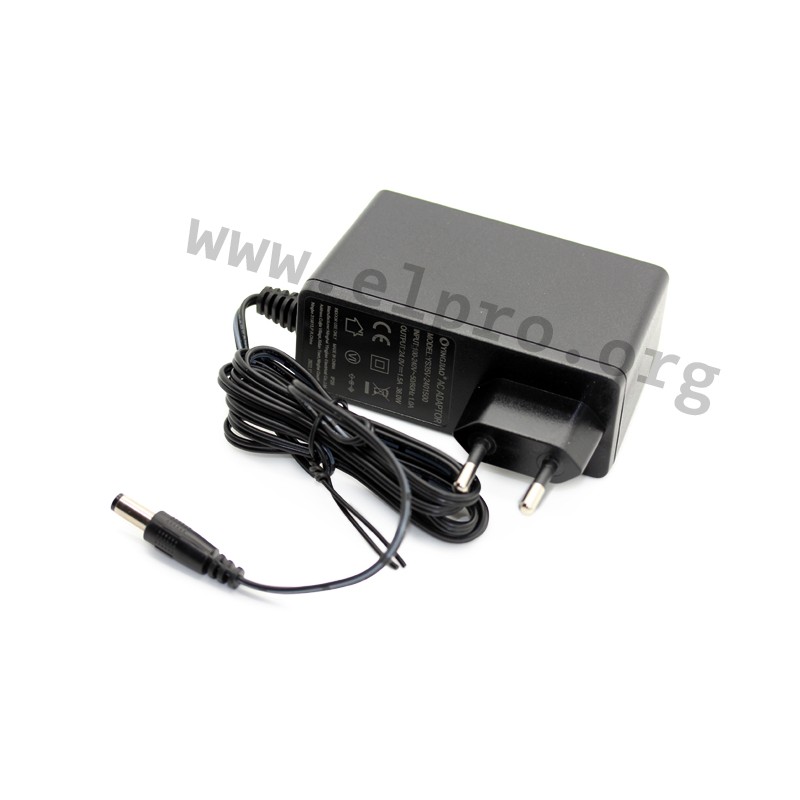

Yingjiao plug-in power supply series YS35V

Plug-in switching power supplies with 36W, a universal input, energy efficiency Level VI, protection class II and a Europlug. These devices have a low leakage current (<0,25mA) and are protected against overload, short circuit as well as overvoltage. They are inexpensive and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS35V-1203000 and YS35V-2401500.

  • single output
  • output: 36W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 70A
  • input current: 1,2A
  • input plug: Euro
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +60°C
  • dimensions: 90x36x91mm
  • weight: 150g

YS35V-1203000

242388 YS35V-1203000 YS35V-1203000 Yingjiao plug-in power supply series YS35V. Plug-in switching power supplies with 36W, a universal input, energy efficiency Level VI, protection class II and a Europlug. These devices have a low leakage current (&lt;0,25mA) and are protected against overload, short circuit as well as overvoltage. They are inexpensive and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS35V-1203000 and YS35V-2401500. single output output: 36W input voltage: 90 to 264V AC (50 to 60Hz) maximal input inrush current: 70A input current: 1,2A input plug: Euro output plug: 5,5x2,1mm coaxial connector operating temperature: -20 to +60°C dimensions: 90x36x91mm weight: 150g

Specifications

manufacturer
Manufacturer's name YS35V-1203000
Output voltage [V] 12
Efficiency [%] 88
Output current [A] 3
Output power [W] 36
Ripple [mVp-p] 120
Data Sheet

Unit price

9,99 €

Stock: 769
Further delivery:
CW 33/2024
