YS6MC-0501200

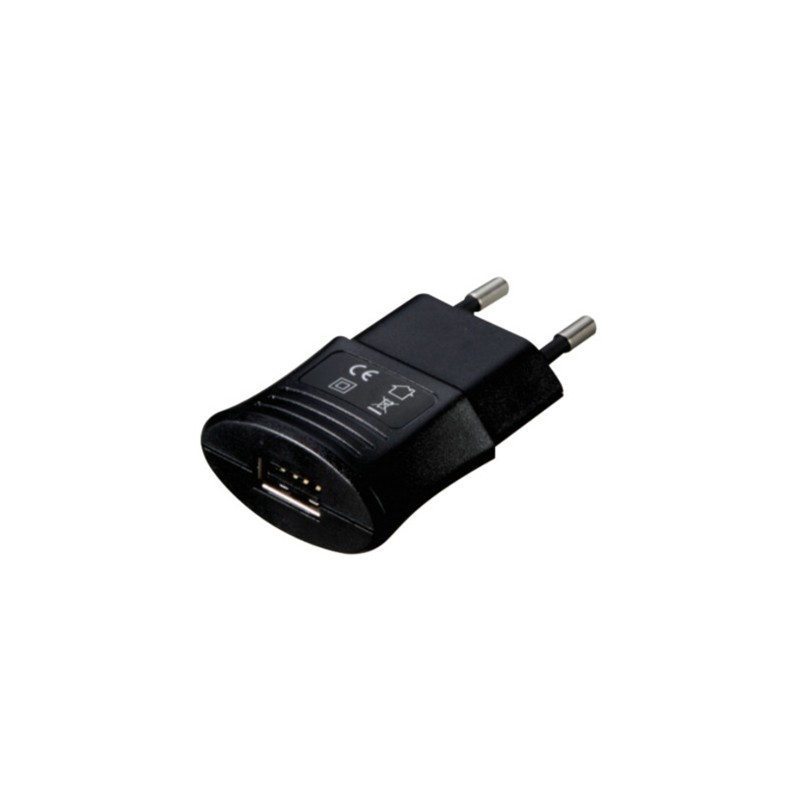

Yingjiao plug-in power supply series YS6MC

Plug-in switching power supplies with 6W, a Europlug, a USB-A output and protection class II. These devices meet energy efficiency Level VI and are protected against overvoltage, short circuit as well as overload. They are inexpensive and comply with EN 62368-1 as well as EN 55032 class B. We offer the type YS6MC-0501200 of this Yingjiao series.

  • single output
  • output: 6W
  • input voltage: 220 to 240V AC (50 to 60Hz)
  • maximal input inrush current: 65A
  • input current: 0,2A
  • input plug: Euro
  • output plug: USB-A
  • operating temperature: -20 to +60°C
  • dimensions: 67x37x20mm
  • weight: 27g

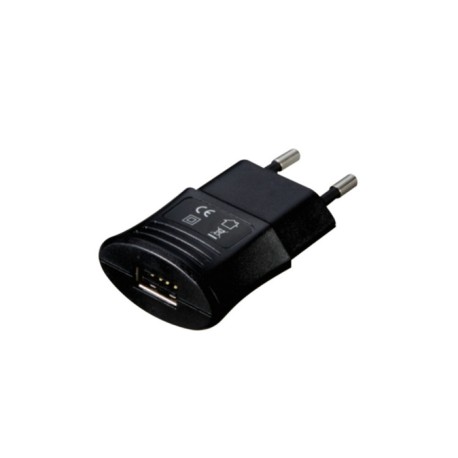

YS6MC-0501200, Yingjiao plug-in switching power supplies, 6W, energy efficiency Level VI, YS6MC series

YS6MC-0501200

252825 YS6MC-0501200 YS6MC-0501200 Yingjiao plug-in power supply series YS6MC. Plug-in switching power supplies with 6W, a Europlug, a USB-A output and protection class II. These devices meet energy efficiency Level VI and are protected against overvoltage, short circuit as well as overload. They are inexpensive and comply with EN 62368-1 as well as EN 55032 class B. We offer the type YS6MC-0501200 of this Yingjiao series. single output output: 6W input voltage: 220 to 240V AC (50 to 60Hz) maximal input inrush current: 65A input current: 0,2A input plug: Euro output plug: USB-A operating temperature: -20 to +60°C dimensions: 67x37x20mm weight: 27g

Specifications

manufacturer
Manufacturer's name YS6MC-0501200
Data Sheet

Unit price

3,79 €

Volume discounts

Quantity Unit price
100 + 3,29 €

Stock: 546
Next incoming goods:
CW 07/2026
1000 units

Further delivery:
CW 15/2026
