NP 3-6

6 V lead-acid rechargeable batteries

The lead-acid rechargeable batteries of the series NP by Yuasa are characterised by good high current performance, a good cycle durability of - according to discharge intensity - more than 1000 discharging/recharging cycles and an extended shelf life at low self-discharge level.
The valve regulated design with mechanically strong ABS container is extremely flame-retardant (acc. UL94HB). Above that the batteries are endued with the Absorbing GlassMatt Technology (AGM) in which the electrolyte is fully absorbed and a corrosion reduction using a lead-tin-calcium alloy to extend service life. They can be operated permanently when lying on the side: any operation upside down is solely permissible for one discharge.

* excellent high current performance
* service-free operation
* very good charging efficiency
* expected Design Life: 3 to 5 years

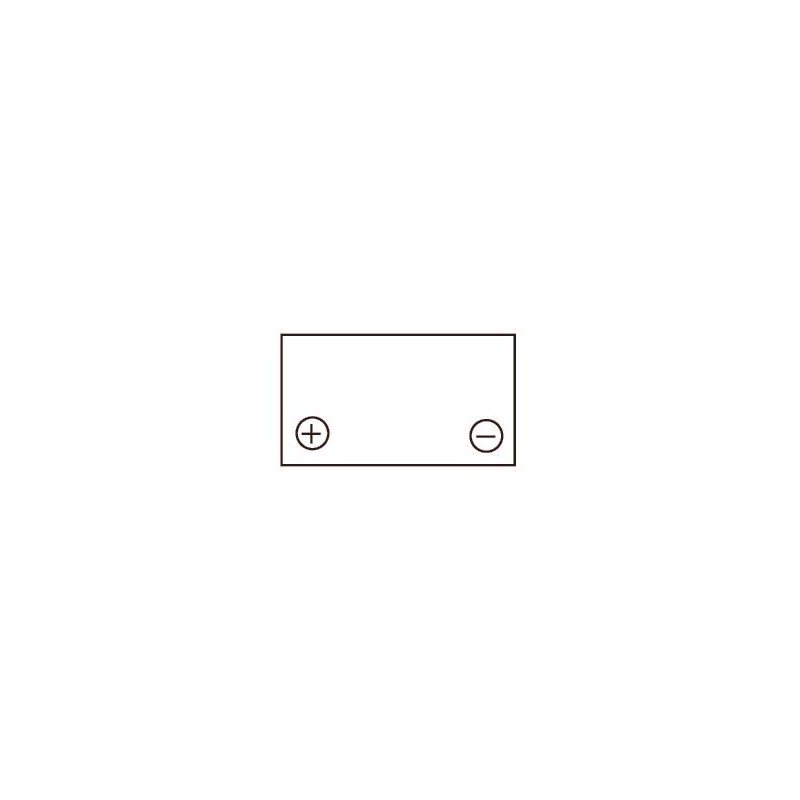

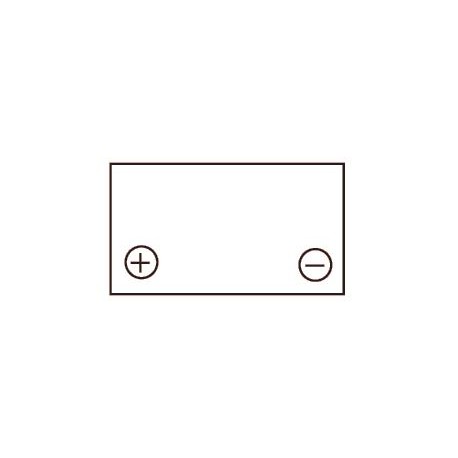

contact arrangement NP 1,2-6, NP 3-6, NP 7-6, NP 12-6 View larger

NP 3-6

27799 NP 3-6 NP3-6 NP3-6 6 V lead-acid rechargeable batteries. The lead-acid rechargeable batteries of the series NP by Yuasa are characterised by good high current performance, a good cycle durability of - according to discharge intensity - more than 1000 discharging/recharging cycles and an extended shelf life at low self-discharge level. The valve regulated design with mechanically strong ABS container is extremely flame-retardant (acc. UL94HB). Above that the batteries are endued with the Absorbing GlassMatt Technology (AGM) in which the electrolyte is fully absorbed and a corrosion reduction using a lead-tin-calcium alloy to extend service life. They can be operated permanently when lying on the side: any operation upside down is solely permissible for one discharge. * excellent high current performance* service-free operation* very good charging efficiency* expected Design Life: 3 to 5 years

Data sheet

manufacturer
manufacturer's name NP3-6
rated capacitance [Ah] 3
height [mm] 2,8
nominal voltage [V] 6
width [mm] 34
[mm] 4,75
length [mm] 134
weight [g] 0,7

Download

Data Sheet

15,19 €

stock: 12
