BV302S09010

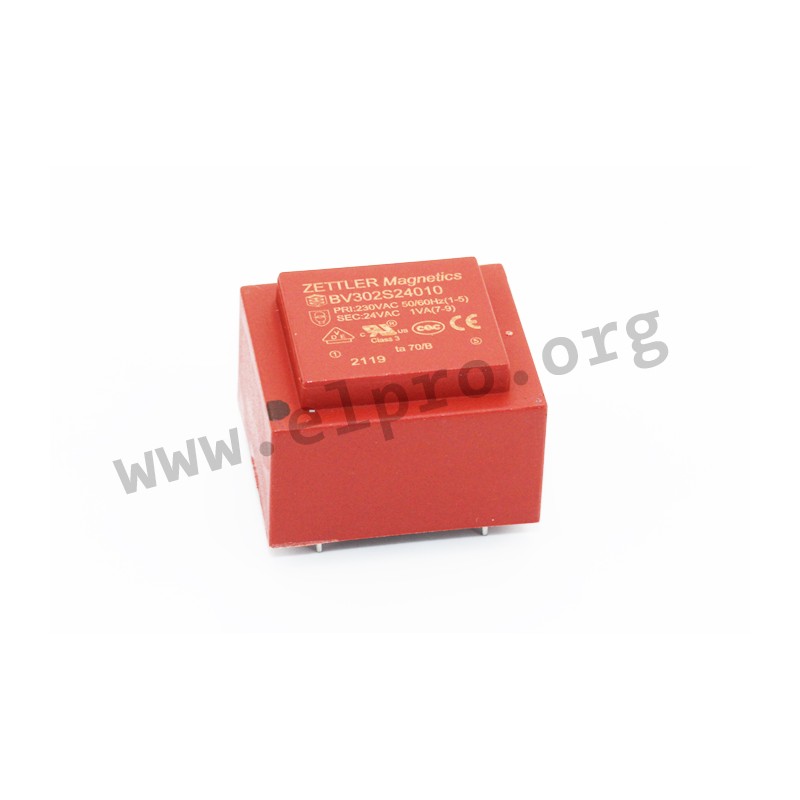

Zettler PCB transformers

Transformers with an EI30 core and 1VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are rated for and operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06010, BV302S09010, BV302S12010, BV302S15010, BV302S18010 and BV302S24010.

  • core: EI30
  • output: 1VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

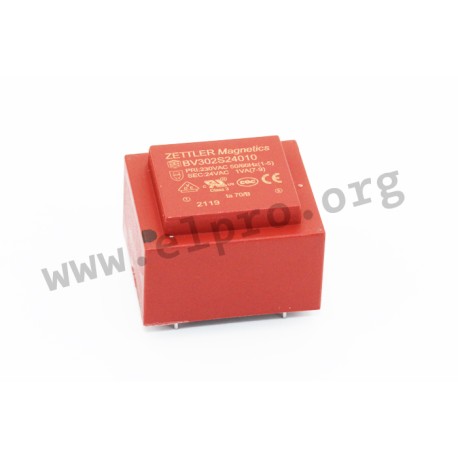

BV302S09010, Zettler PCB transformers, 1VA, EI 30

BV302S09010

237882 BV302S09010 BV302S09010 Zettler PCB transformers. Transformers with an EI30 core and 1VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are rated for and operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06010, BV302S09010, BV302S12010, BV302S15010, BV302S18010 and BV302S24010. core: EI30 output: 1VA input voltage: 230V (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S09010
Secondary current [mA] 111
Secondary voltage [V] 9
Data Sheet

Unit price

1,22 €

Stock: 225
Further delivery:
CW 39/2024
