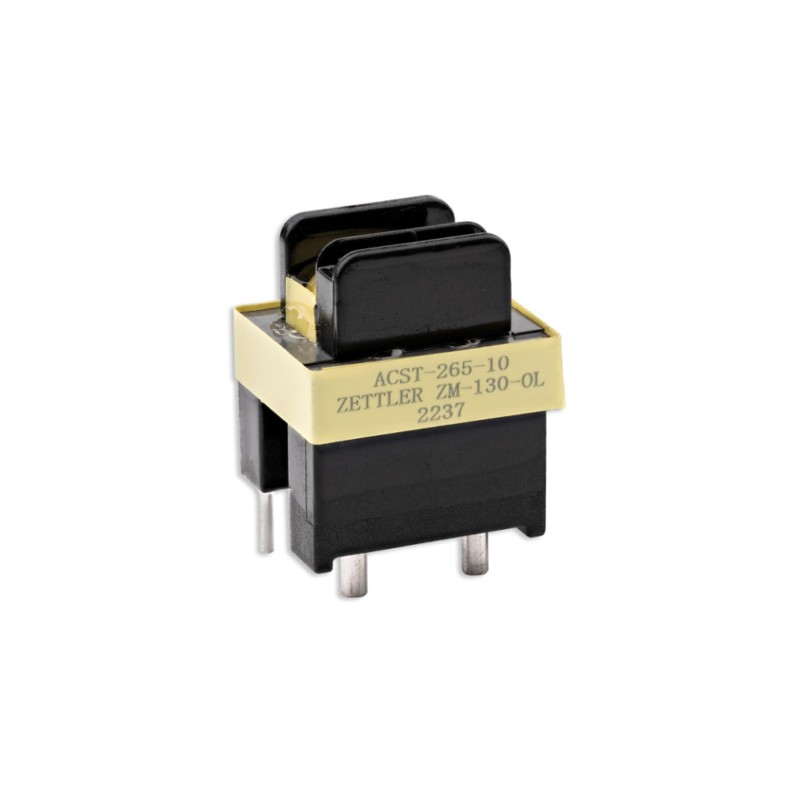

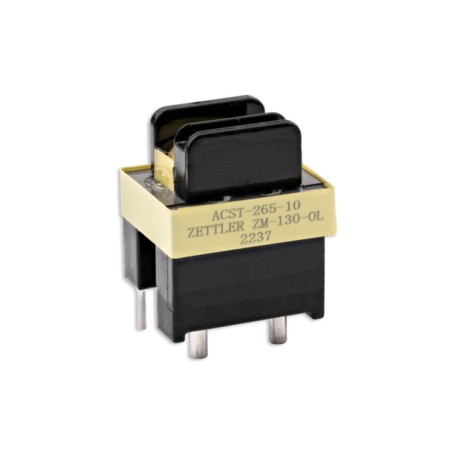

ACST-265-10

Zettler current transformators series ACST

Current transformators for print assembly and ideal for current control application. Type ACST-265-10 conforms with IEC61869-1 and IEC61869-2, as well as it is designed for IEC61851 Mode 2 and Mode 3 charging purposes. We offer the following types of this Zettler series: ACST-262-15, ACST-262-18, and ACST-265-10.

  • operating temperature: -40 to +85°C
  • current range: 0,4 to 30 Arms, respectively 0,4 to 36 Arms (ACST-265-10)
ACST-265-10, Zettler current transformators, print assembly, ACST series

ACST-265-10

249831 ACST-265-10 ACST-265-10 Zettler current transformators series ACST. Current transformators for print assembly and ideal for current control application. Type ACST-265-10 conforms with IEC61869-1 and IEC61869-2, as well as it is designed for IEC61851 Mode 2 and Mode 3 charging purposes. We offer the following types of this Zettler series: ACST-262-15, ACST-262-18, and ACST-265-10. operating temperature: -40 to +85°C current range: 0,4 to 30 Arms, respectively 0,4 to 36 Arms (ACST-265-10)

Specifications

manufacturer
Manufacturer's name ACST-265-10
Secondary current [mA] 32
Turns ratio 1:1000
Data Sheet

Unit price

1,54 €

Stock: 475
Further delivery:
CW 50/2025
