AZ576-1C-12D

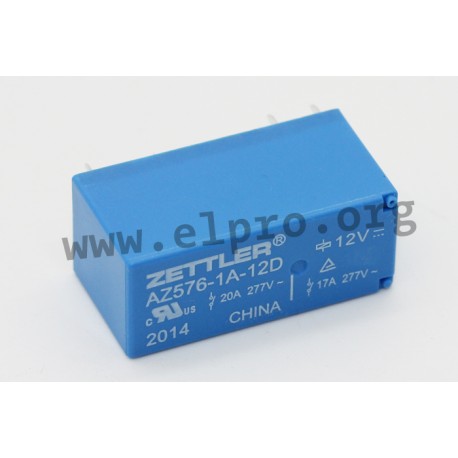

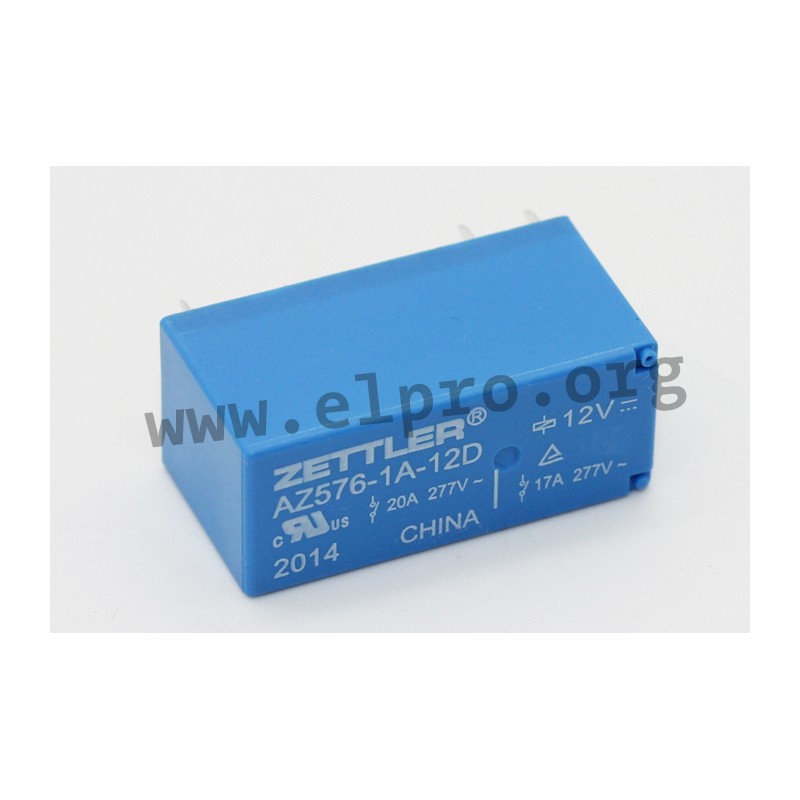

Zettler PCB relay series AZ576

  • power relays in a compact size (29,3x12,7x15,3mm)
  • suitable for an ambient temperature of up to 105°C
  • dielectric strength of 5000Vrms between contact and coil
  • with 1 changeover contact
  • contact material: AgSnO2
  • switching current: 20A

AZ576-1C-12D

156182 AZ576-1C-12D AZ576-1C-12D Zettler PCB relay series AZ576. power relays in a compact size (29,3x12,7x15,3mm) suitable for an ambient temperature of up to 105°C dielectric strength of 5000Vrms between contact and coil with 1 changeover contact  contact material: AgSnO2 switching current: 20A

Specifications

manufacturer
Manufacturer's name AZ576-1C-12D
Min. operating voltage [V] 9
Coil resistance [Ω] 360
Max. operating voltage [V] 18
Switching current [A] 20
Nominal capacity [mW] 400
Data Sheet

Unit price

1,69 €

Stock: 1770

Minimum order quantity 10 units or
multiples of 10.
