AZ576-1C-24D

Zettler PCB relay series AZ576

  • power relays in a compact size (29,3x12,7x15,3mm)
  • suitable for an ambient temperature of up to 105°C
  • dielectric strength of 5000Vrms between contact and coil
  • with 1 changeover contact
  • contact material: AgSnO2
  • switching current: 20A

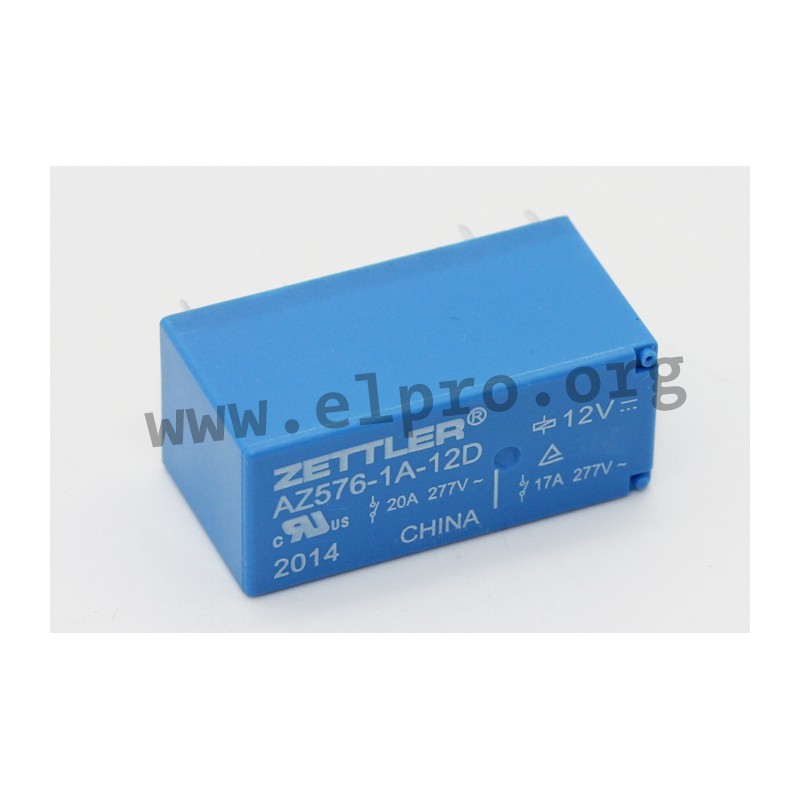

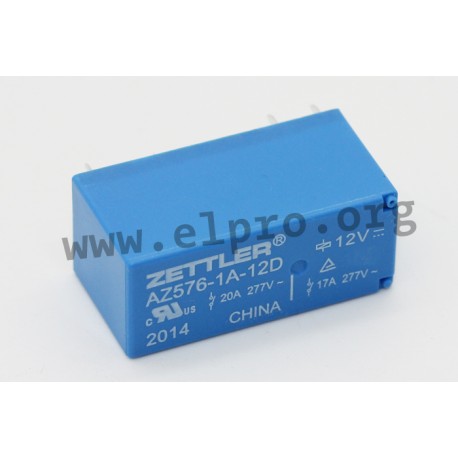

AZ576-1C-24D, Zettler PCB relays, 20A, 1 changeover or 1 normally open contact, AZ576 series View larger

AZ576-1C-24D

156183 AZ576-1C-24D AZ576-1C-24D Zettler PCB relay series AZ576. power relays in a compact size (29,3x12,7x15,3mm) suitable for an ambient temperature of up to 105°C dielectric strength of 5000Vrms between contact and coil with 1 changeover contact  contact material: AgSnO2 switching current: 20A

Data sheet

manufacturer
manufacturer's name AZ576-1C-24D
min. operating voltage [V] 18
coil resistance [Ω] 1440
max. operating voltage [V] 36
switching current [A] 20
nominal capacity [mW] 400

Download

Data Sheet

5,59 €

Volume discounts

10 pcs. / 1,51 €

stock: 340
