AZ696-1CE-5DE

Electromechanical relays

These 10A subminiature power relays are characterized by a high sensitivity, 110mW pickup.
Sealed version with a dielectric strength 4000Vrms. The isolation spacing is greater than 8mm. The epoxy sealed for automatic wave soldering and cleaning. We are offering the types AZ696-1CE-5DE, AZ696-1CE-12DE and AZ696-1CE-24DE by Zettler.

• contact: SPDT
• contact material: AgSnO
• rated current: 10A max.
• switching voltage: 440V AC / 240V DC
• max. switching power: 2500VA / 300W
• operate/release time: 10/5ms testing voltage (FCC)
• coil/contact: 4000VRMS
• open contacts: 1000VRMS
• lifetime mechanical, min.: 1x107
• operations electrical, min. (10A / 240V AC): 1x105
• operations operating temperature: -40 to +85°C max.
• solder temperature: 270°C (5s)
• weight approx.: 11g

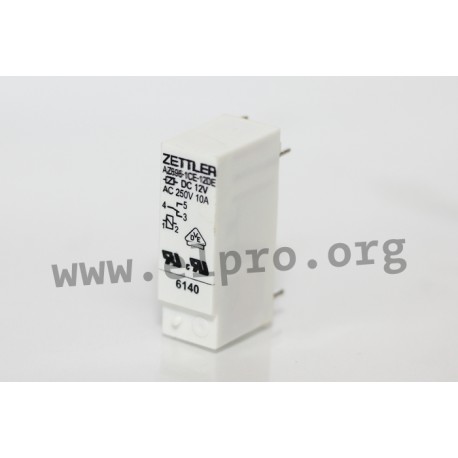

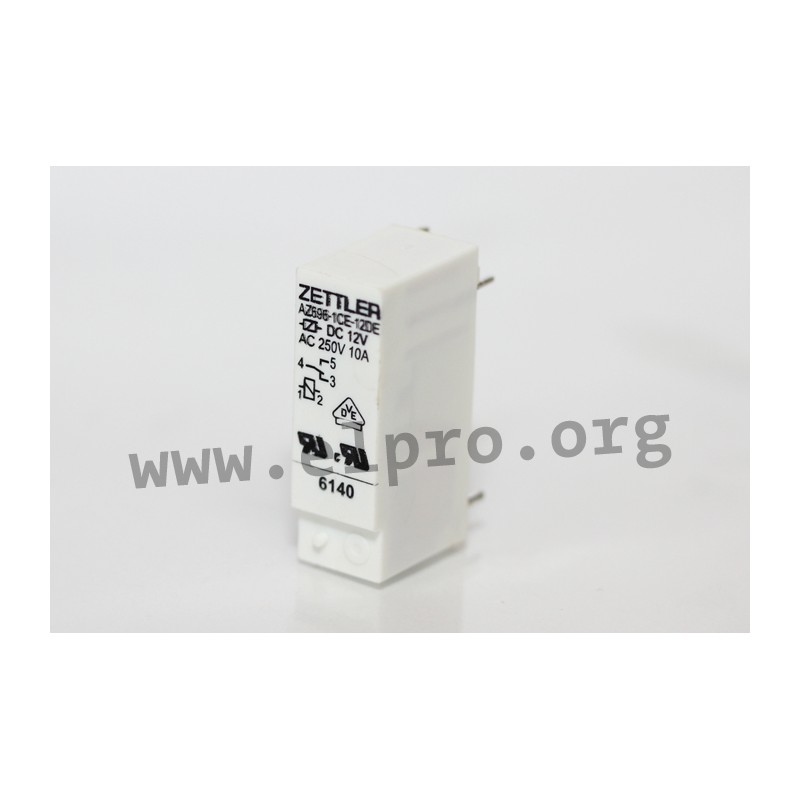

Zettler AZ696 series View larger

AZ696-1CE-5DE

107614 AZ696-1CE-5DE AZ696-1CE-5DE Electromechanical relays. These 10A subminiature power relays are characterized by a high sensitivity, 110mW pickup.Sealed version with a dielectric strength 4000Vrms. The isolation spacing is greater than 8mm. The epoxy sealed for automatic wave soldering and cleaning. We are offering the types AZ696-1CE-5DE, AZ696-1CE-12DE and AZ696-1CE-24DE by Zettler. • contact: SPDT• contact material: AgSnO• rated current: 10A max.• switching voltage: 440V AC / 240V DC• max. switching power: 2500VA / 300W• operate/release time: 10/5ms testing voltage (FCC)• coil/contact: 4000VRMS• open contacts: 1000VRMS• lifetime mechanical, min.: 1x107• operations electrical, min. (10A / 240V AC): 1x105• operations operating temperature: -40 to +85°C max.• solder temperature: 270°C (5s)• weight approx.: 11g

Data sheet

manufacturer
manufacturer's name AZ696-1CE-5DE
nominal voltage [V DC] 5
coil resistance [Ω] 110
min. operating voltage [V DC] 3,5
max. operating voltage [V DC] 12,0
nominal capacity [mW] 230

Download

Data Sheet

5,49 €

Volume discounts

10 pcs. / 1,47 €

stock: 2260
Next incoming:
CW:45/2021
500 pieces
