AZ6960-1CE-5DEA

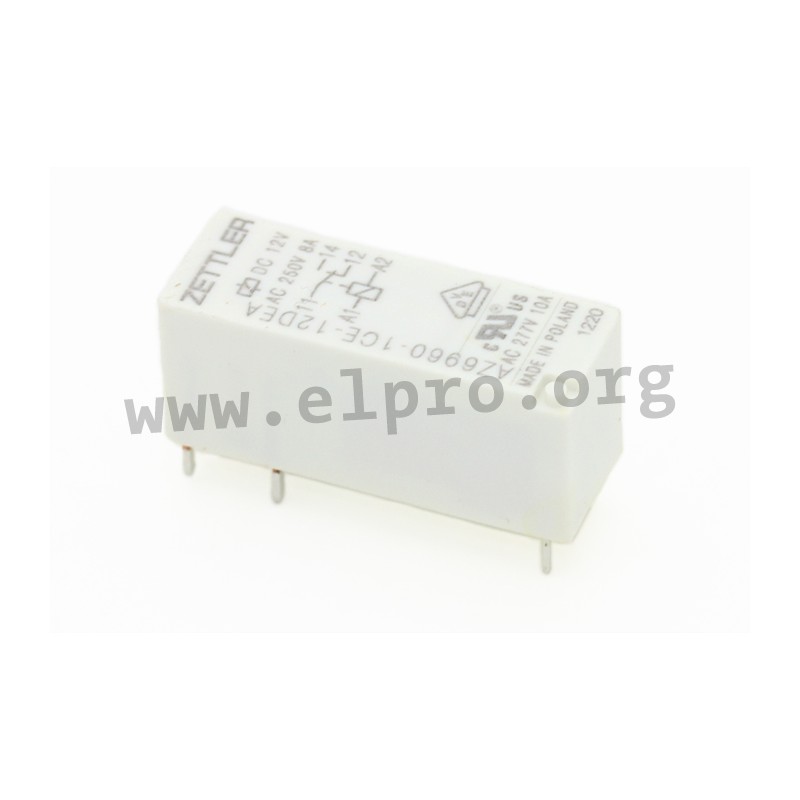

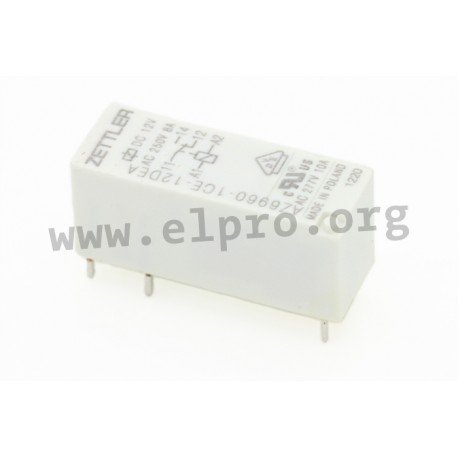

Zettler PCB relay series AZ6960

  • relays with 1 changeover contact
  • dielectric strength of 5000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • types with gold-plated contacts (AZ6960_A) or epoxy sealing (AZ6960_E) available
  • switching current: 8A

AZ6960-1CE-5DEA

156101 AZ6960-1CE-5DEA AZ6960-1CE-5DEA Zettler PCB relay series AZ6960. relays with 1 changeover contact dielectric strength of 5000Vrms between contact and coil proof tracking index PTI/CTI 250 types with gold-plated contacts (AZ6960_A) or epoxy sealing (AZ6960_E) available switching current: 8A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name AZ6960-1CE-5DEA
Nominal voltage [V DC] 5
Min. operating voltage [V] 3,5
Coil resistance [Ω] 102
Max. operating voltage [V] 18
Nominal capacity [mW] 250
Data Sheet

Unit price

1,63 €

Stock: 240

Minimum order quantity 10 units or
multiples of 10.
