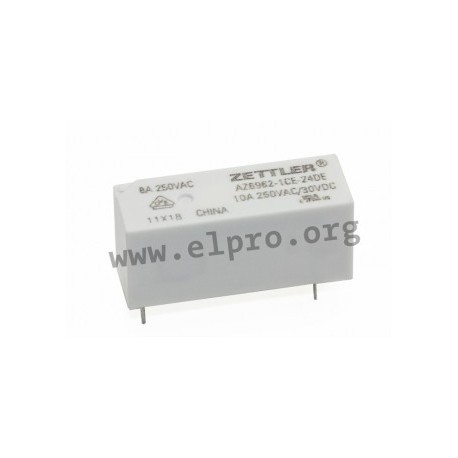

AZ6962-1AB-12D

Zettler PCB relay series AZ6962

  • subminiature relays in a sealed case (28,5x10,1x12,5mm)
  • with a high sensivity (120mW pickup), 1 normally open (AZ6962-1A_) or 1 changeover contact (AZ6962-1C_) and a reinforced insulation
  • comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1)
  • dielectric strength of 5000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • contact material: AgSnO2
  • switching capacity: 2500VA / 300W
  • switching current: 10A
AZ6962-1AB-12D, Zettler PCB relays, 10A, 1 changeover or 1 normally open contact, AZ6962 series

AZ6962-1AB-12D

241423 AZ6962-1AB-12D AZ6962-1AB-12D Zettler PCB relay series AZ6962. subminiature relays in a sealed case (28,5x10,1x12,5mm) with a high sensivity (120mW pickup), 1 normally open (AZ6962-1A_) or 1 changeover contact (AZ6962-1C_) and a reinforced insulation comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1) dielectric strength of 5000Vrms between contact and coil proof tracking index PTI/CTI 250 contact material: AgSnO2 switching capacity: 2500VA / 300W switching current: 10A

Specifications

manufacturer
Manufacturer's name AZ6962-1AB-12D
Nominal voltage [V DC] 12
Min. operating voltage [V] 8,4
Coil resistance [Ω] 620
Max. operating voltage [V] 27,2
Switching current [A] 10
Nominal capacity [mW] 120
Data Sheet

Unit price

1,16 €

Stock: 820
Further delivery:
CW 18/2026

Minimum order quantity 10 units or
multiples of 10.
