AZ764-1AE-5D

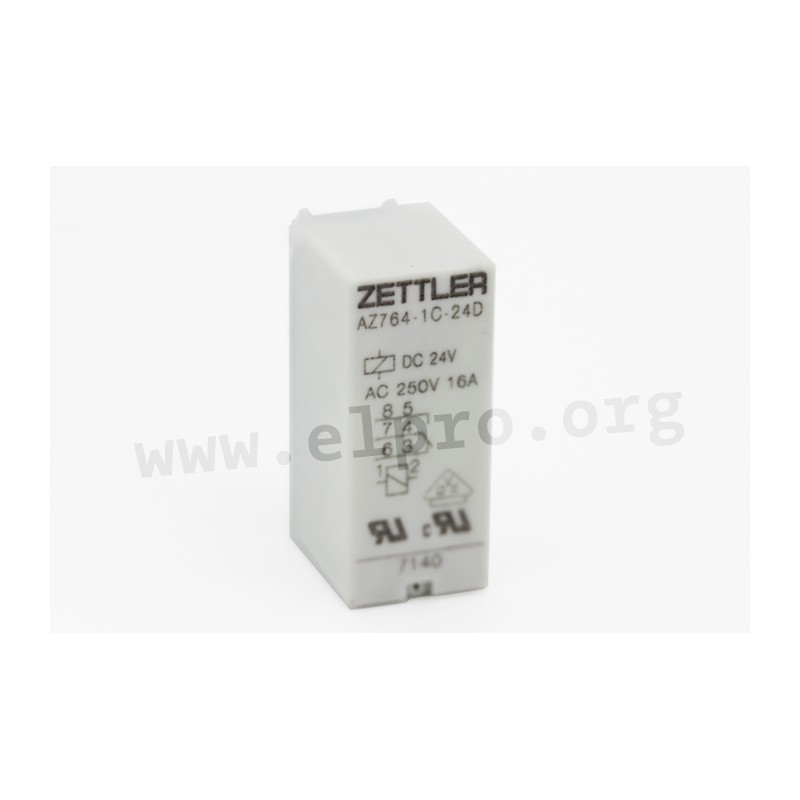

Zettler PCB relay series AZ764

  • power relays in a flat case (29x12,7x15,7mm)
  • with a reinforced insulation and 1 changeover (AZ764-1C_) or 1 normally open contact (AZ764-1A_)
  • comply with IEC60730-1 and IEC60335-1
  • proof tracking index PTI/CTI 250
  • dielectric strength of 5000Vrms between contacts and coil
  • high temperature (AZ764H_) and sealed types (AZ764_DE) available
  • switching current: 16A

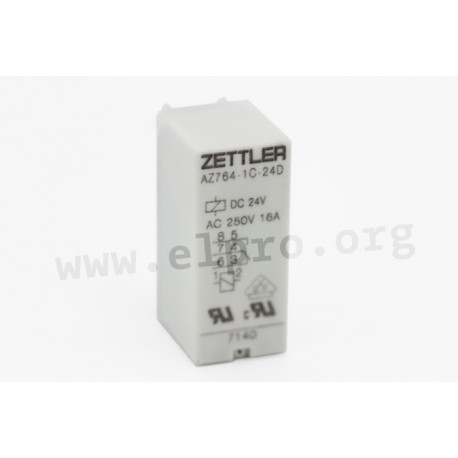

AZ764-1AE-5D, Zettler PCB relays, 16A, 1 changeover or 1 normally open contact, AZ764 series

AZ764-1AE-5D

156159 AZ764-1AE-5D AZ764-1AE-5D Zettler PCB relay series AZ764. power relays in a flat case (29x12,7x15,7mm) with a reinforced insulation and 1 changeover (AZ764-1C_) or 1 normally open contact (AZ764-1A_) comply with IEC60730-1 and IEC60335-1 proof tracking index PTI/CTI 250 dielectric strength of 5000Vrms between contacts and coil high temperature (AZ764H_) and sealed types (AZ764_DE) available switching current: 16A

Specifications

manufacturer
Manufacturer's name AZ764-1AE-5D
Nominal voltage [V DC] 5
Min. operating voltage [V] 3,5
Coil resistance [Ω] 60
Max. operating voltage [V] 12,7
Switching current [A] 16
Nominal capacity [mW] 400
Data Sheet

Unit price

1,64 €

Stock: 0
Further delivery:
CW 14/2026

Minimum order quantity 1.000 units or
multiples of 1.000.
