AZ7709T-1AE-12DSEF

Zettler PCB relay series AZ7709

  • subminiature power relays in a compact design (18,9x10,7x15,7mm)
  • proof tracking index PTI/CTI 250
  • dielectric strength of 4000Vrms between contact and coil
  • with 1 normally open contact SPST-NO
  • sealed (AZ7709_DSEF) and high capacity versions (AZ7709T_) available
  • contact material: AgSnO2
  • switching current: 5A

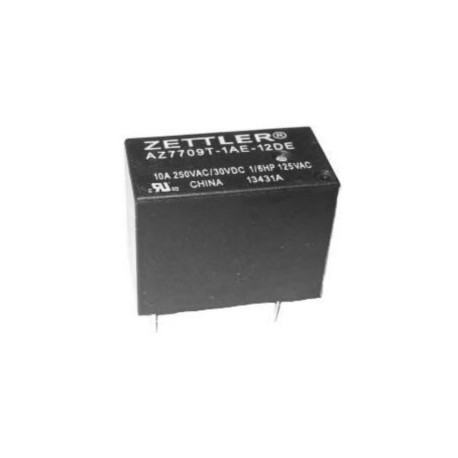

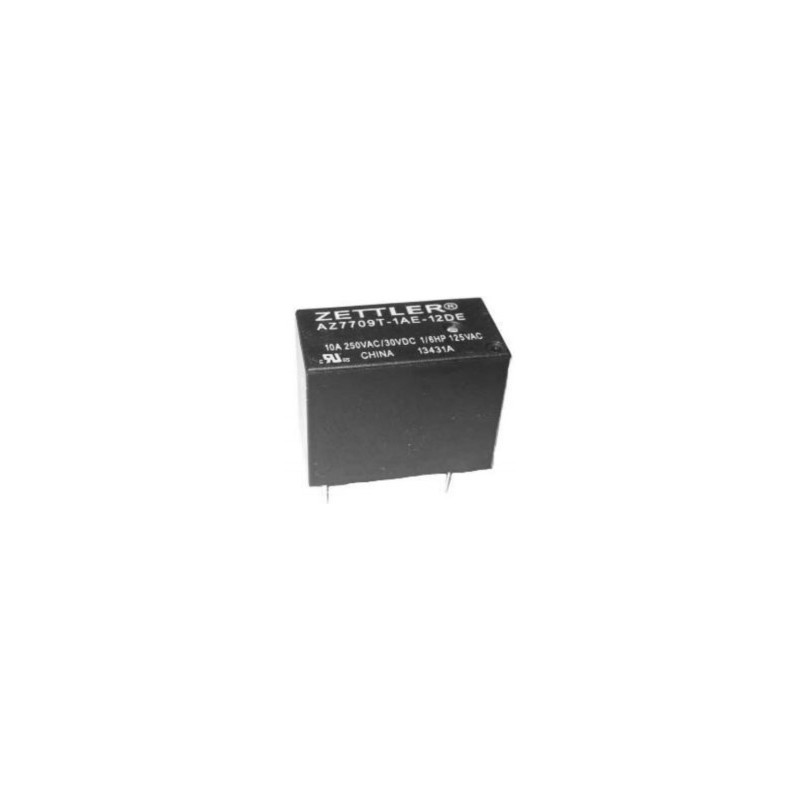

AZ7709T-1AE-12DSEF, Zettler PCB relays, 5A, 1 normally open contact, AZ7709 series View larger

AZ7709T-1AE-12DSEF

156064 AZ7709T-1AE-12DSEF AZ7709T-1AE-12DSEF Zettler PCB relay series AZ7709. subminiature power relays in a compact design (18,9x10,7x15,7mm) proof tracking index PTI/CTI 250 dielectric strength of 4000Vrms between contact and coil with 1 normally open contact SPST-NO sealed (AZ7709_DSEF) and high capacity versions (AZ7709T_) available  contact material: AgSnO2 switching current: 5A

Data sheet

manufacturer
manufacturer's name AZ7709T-1AE-12DSEF
min. operating voltage [V] 9
coil resistance [Ω] 720
max. operating voltage [V] 15,6
switching current [A] 5
nominal capacity [mW] 200

Download

Data Sheet

3,79 €

Volume discounts

10 pcs. / 0,999 €

stock: 910
