AZ850P2-24

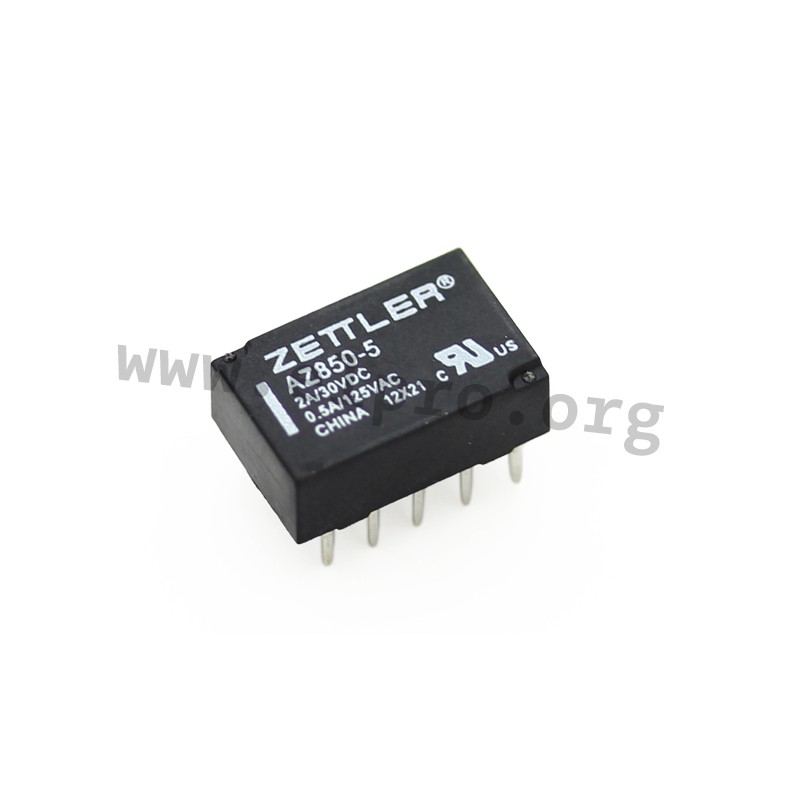

Zettler PCB relay series AZ850

  • polarized relays in a compact design (14x9x5mm)
  • 2 changeover contacts DPDT
  • with gold-plated contacts, a DIL terminal layout and a high sensivity coil
  • bistable dual coil latching version
  • contact material: AgPd
  • switching current: 1A

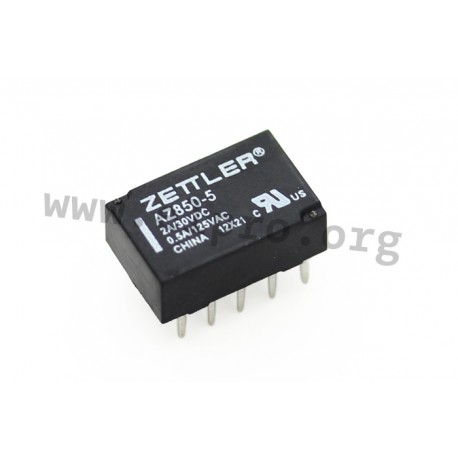

AZ850P2-24, Zettler PCB relays, 1A, 2 changeover contacts, AZ850 series

AZ850P2-24

155986 AZ850P2-24 AZ850P2-24 Zettler PCB relay series AZ850. polarized relays in a compact design (14x9x5mm) 2 changeover contacts DPDT with gold-plated contacts, a DIL terminal layout and a high sensivity coil bistable dual coil latching version contact material: AgPd switching current: 1A

Specifications

manufacturer
Manufacturer's name AZ850P2-24
Min. operating voltage [V] 18
Coil resistance [Ω] 1920
Max. operating voltage [V] 36
Switching current [A] 1
Nominal capacity [mW] 300
Data Sheet

Unit price

1,58 €

Stock: 445
Further delivery:
CW 38/2024

Minimum order quantity 5 units or
multiples of 5.
