AZ8521PS-4.5TR

Zettler SMD PCB relay series AZ8521

  • subminiature relays in a bistable (latching) type

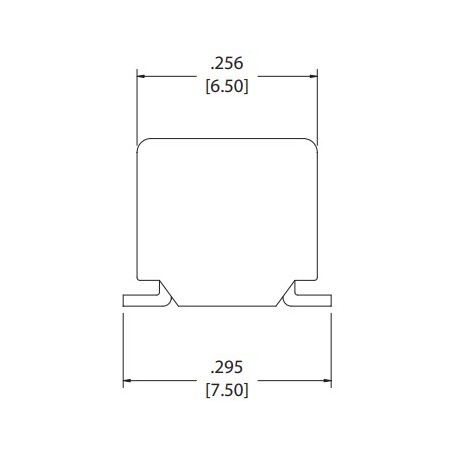

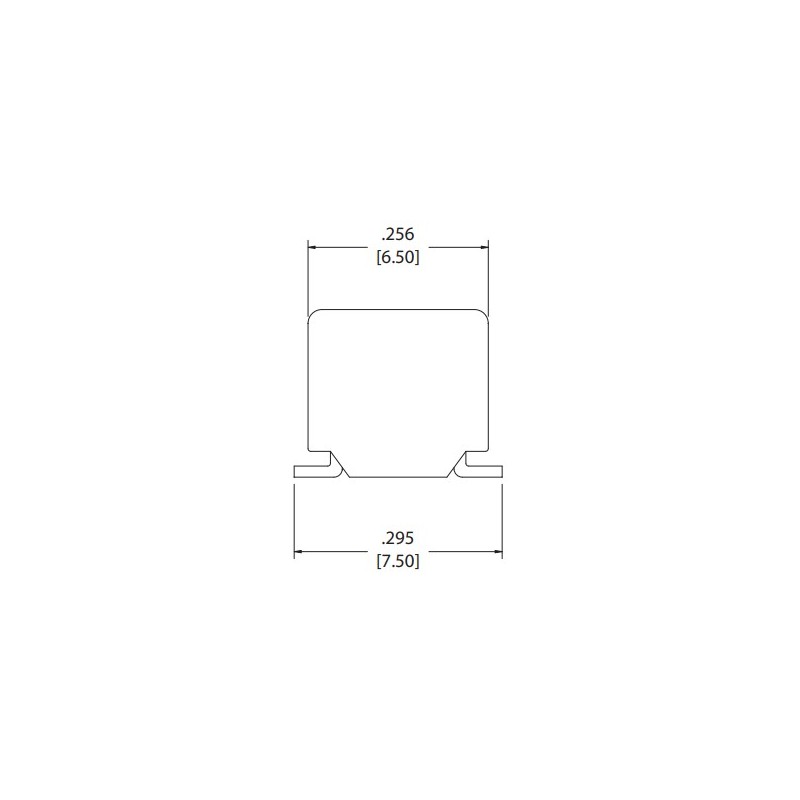

  • in an SMD housing (10x76,5x5,65mm)
  • with 2 changeover contacts (DPDT), a low power consumption (79mW), gold-plated contacts and a minimal switching load of 10mV, 10μA
  • comply with IEC 60950 resp. EN41003
  • suitable for automatic wave soldering due to an epoxy sealing
  • contact material: AgNi
  • switching current: 2A
AZ8521PS-4.5TR, Zettler SMD relays, 2A, 2 changeover contacts, bistable, AZ8521 series

AZ8521PS-4.5TR

114229 AZ8521PS-4.5TR AZ8521PS-4.5TR Zettler SMD PCB relay series AZ8521. subminiature relays in a bistable (latching) type in an SMD housing (10x76,5x5,65mm) with 2 changeover contacts (DPDT), a low power consumption (79mW), gold-plated contacts and a minimal switching load of 10mV, 10μA comply with IEC 60950 resp. EN41003 suitable for automatic wave soldering due to an epoxy sealing contact material: AgNi switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ8521PS-4.5TR
Nominal voltage [V DC] 4,5
Min. operating voltage [V] 3,38
Coil resistance [Ω] 203
Max. operating voltage [V] 6,7
Switching current [A] 2
Nominal capacity [mW] 100
Data Sheet

Unit price

1,53 €

Stock: 0
Further delivery:
CW 15/2026

Minimum order quantity 3.600 units or
multiples of 3.600.
