AZEV116-1AE1BG-24D

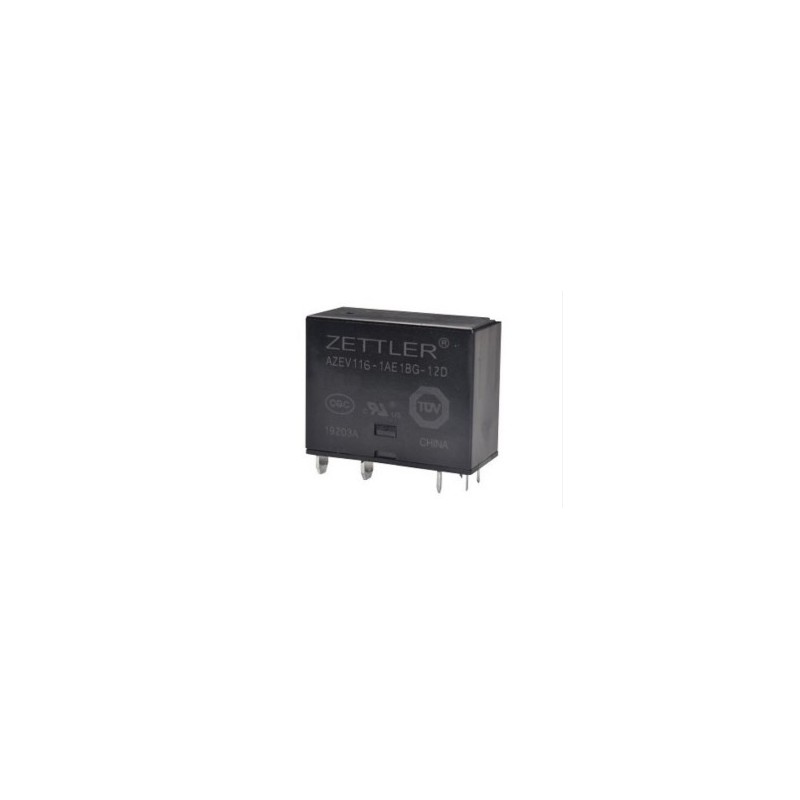

Zettler PCB relay series AZEV116

Relays in a 35x16x27,9mm housing made of PBT (UL94V-0) with 16A, a normally open load contact, a normally closed signal contact and a contact gap of at least 2,25m. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1020A. They are flux-tight (RTII), are suitable for PCB mounting and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV116-1AE1BG-12D and AZEV116-1AE1BG-24D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 20A
  • maximal switching voltage: 400V AC
  • maximal switching power: 6400VA
AZEV116-1AE1BG-24D, Zettler PCB relays, 16A, 1 normally closed and 1 normally open contact, for e-mobility, AZEV116 series

AZEV116-1AE1BG-24D

242747 AZEV116-1AE1BG-24D AZEV116-1AE1BG-24D Zettler PCB relay series AZEV116. Relays in a 35x16x27,9mm housing made of PBT (UL94V-0) with 16A, a normally open load contact, a normally closed signal contact and a contact gap of at least 2,25m. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1020A. They are flux-tight (RTII), are suitable for PCB mounting and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV116-1AE1BG-12D and AZEV116-1AE1BG-24D. load contact: SPST-NO signal contact: SPST-NC maximal switching current: 20A maximal switching voltage: 400V AC maximal switching power: 6400VA

Specifications

manufacturer
Manufacturer's name AZEV116-1AE1BG-24D
Nominal voltage [V DC] 24
Coil resistance [Ω] 372
Min. operating voltage [V DC] 18
Max. operating voltage [V DC] 28,8
Data Sheet

Unit price

5,09 €

Stock: 180
Further delivery:
CW 42/2024

Minimum order quantity 10 units or
multiples of 10.
