AZEV140-1AE1BG-12D

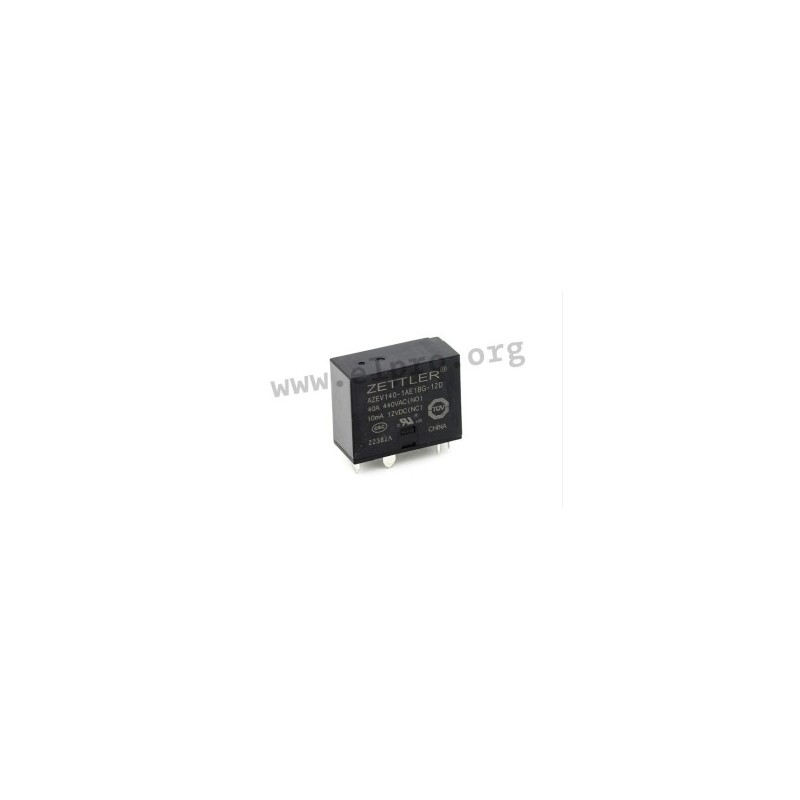

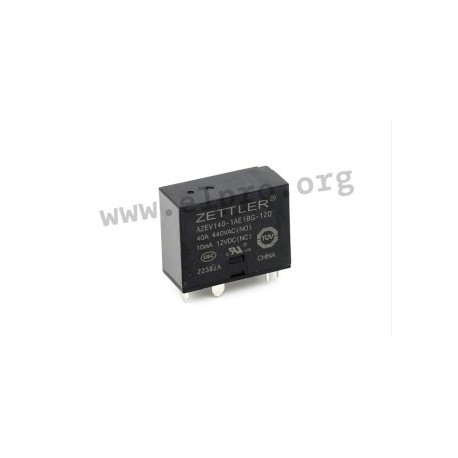

Zettler PCB relay series AZEV140

Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1850A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV140-1AE1BG-12D and AZEV140-1AE1BG-24D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 50A
  • maximal switching voltage: 440V AC
  • maximal switching power: 22.000VA
AZEV140-1AE1BG-12D, Zettler PCB relays, 40A, 1 normally closed and 1 normally open contact, for e-mobility, AZEV140 series

AZEV140-1AE1BG-12D

242750 AZEV140-1AE1BG-12D AZEV140-1AE1BG-12D Zettler PCB relay series AZEV140. Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1850A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV140-1AE1BG-12D and AZEV140-1AE1BG-24D. load contact: SPST-NO signal contact: SPST-NC maximal switching current: 50A maximal switching voltage: 440V AC maximal switching power: 22.000VA

Specifications

manufacturer
Manufacturer's name AZEV140-1AE1BG-12D
Nominal voltage [V DC] 12
Coil resistance [Ω] 68,5
Min. operating voltage [V DC] 9
Max. operating voltage [V DC] 14,4
Data Sheet

Unit price

7,89 €

Stock: 420
Further delivery:
CW 37/2024

Minimum order quantity 10 units or
multiples of 10.
