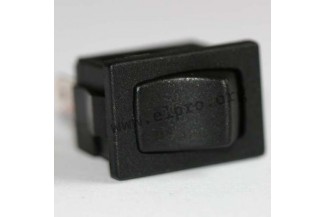

Arcolectric rocker switches, 10A, for 13x19 panel cut-out, with middle position, 8620 series

* with connector 4.8x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 10A
* switching current at inductive load, max.: 4A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
*...

* with connector 4.8x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 10A
* switching current at inductive load, max.: 4A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
* soldering conditions (hand solder): 350°C/6s
* material of shell and rocker: nylon 6.6
* material of current-carrying part: Cu alloy
* contacts: silver-plated
* flamability class: UL94V2

suitable protective caps: WNX 15

> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Elektron Technology
    WNX 14
    1,93 €
    13365 WNX 14 H8620VBAAA H8620VBAAA
    1,93 €

    More
    Stock: 246
Showing 1 - 1 of 1 product
