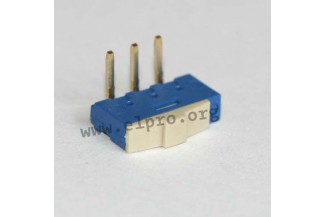

sub-slide switch, pitch: 2.54mm

* attachable
* all plastic parts flame-resistant in accordance with UL94V-0
* switching capacity: 0.5A, 12V DC/1mA, 10mV, min.
* contact resistance, max.: 30mΩ
* dielectric strength: 2mA, 500V DC/1min.
* capacitance, max...

sub-slide switch, pitch: 2.54mm

* attachable
* all plastic parts flame-resistant in accordance with UL94V-0
* switching capacity: 0.5A, 12V DC/1mA, 10mV, min.
* contact resistance, max.: 30mΩ
* dielectric strength: 2mA, 500V DC/1min.
* capacitance, max.: 1.5pF
* insulation resistance (500V DC): 10000MΩ/1min.
* operations: 10000
* operating temperature: -25...+70°C
* soldering temperature: 230°C/3s
* soldering temperature, max.: 245°C
* vibration test: normal operation 10...60Hz, 1.5mm movement
* corrosion test (salt solution): 35°C, 5%/24h

SNX 4: vertical
SNX 5: 90° angled, horizontal

> More
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • ECE
    SNX 4
    0,368 €
    13324 SNX 4 ESP1010 ESP1010
    0,368 €

    More
    Stock: 8434
  • ECE
    SNX 5
    0,52 €
    13325 SNX 5 ESP2010 ESP2010
    0,52 €

    More
    Stock: 2544
