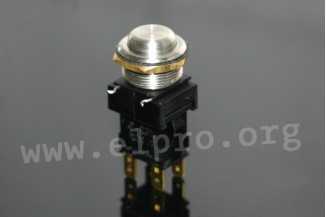

> Passive elements>Switches/keys>Pushbuttons>Arcolectric pressure switches, 16A, for Ø19,2mm panel cut-out, vandal-proof, H8300 series

Manufacturers

for 19.2mm panel cutout

* H8350RP: vandal-proof latching pushbutton
* H8351RP: vandal-proof momentary pushbutton
* protection class IP66
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* ...

for 19.2mm panel cutout

* H8350RP: vandal-proof latching pushbutton
* H8351RP: vandal-proof momentary pushbutton
* protection class IP66
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* insulation resistance: >20MΩ
* contact resistance (new state, 12V DC/1A): <100mΩ
* contact opening width: <3mm
* soldering conditions (hand solder): 350°C/6s
* materials
shell: nylon 6.6
pushbutton: stainless steel
current-carrying parts: Cu alloy
contacts: silver-plated
* flammability class: UL94V2


TNX 4: pushbutton, 2x ON-OFF
TNX 5: pushbutton, 2x ON-OFF

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Elektron Technology
    TNX 4
    11,29 €
    13356 TNX 4 H8350RPAAA H8350RPAAA
    11,29 €

    More
    Stock: 151
  • Elektron Technology
    TNX 5
    20,19 €
    13357 TNX 5 H8351RPAAA H8351RPAAA
    20,19 €

    More
    Stock: 4
Showing 1 - 2 of 2 products
