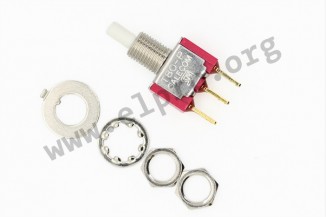

for Ø4.39mm housing cutouts

* pushbutton momentary switch with print or solder terminals
* sealed against dirt and fluxing agent
* particularly suitable for signal applications due to the gold-plated switching contacts
* suitable for use in applicati...

for Ø4.39mm housing cutouts

* pushbutton momentary switch with print or solder terminals
* sealed against dirt and fluxing agent
* particularly suitable for signal applications due to the gold-plated switching contacts
* suitable for use in applications where space is very limited
* switching capacity: 0.4VA at 20V DC
* switching cycles under load: 50'000
* contact resistance: <10mΩ
* insulation resistance: 1000MΩ
* dielectric strength: 1000Veff
* operating temperature: -30...+85°C
* contacts: brass, gold-plated over nickel
* terminals: brass, gold-plated over nickel
* sealing: epoxy
* shell material: diallylphthalate (DAP)


TNX 6: vertical with solder terminals
TNX 7: 90° angled, horizontal, with print terminals

TNX 10: suitable black cap for TNX 6 and TNX 7
TNX 11: suitable red cap for TNX 6 and TNX 7

> More
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Salecom
    P8701-FBR1-E-H, Salecom switches, for Ø4,39mm panel cut-out, T80-P series
    2,69 €
    13358 TNX 6 P8701-FBR1-E-H P8701-FBR1-E-H
    2,69 €
    Stock: 308
  • Salecom
    TNX 7
    3,19 €
    13359 TNX 7 P8701-A4-NR1-E-H P8701-A4-NR1-E-H
    3,19 €
    Stock: 278
  • Salecom
    TNX 10 and TNX 11
    0,076 €
    13334 TNX 10 SH-CF-022-2-H SH-CF-022-2-H
    0,076 €
    Stock: 1158
  • Salecom
    TNX 10 and TNX 11
    0,076 €
    13335 TNX 11 SH-CF-022-3-H SH-CF-022-3-H
    0,076 €
    Stock: 518
Showing 1 - 4 of 4 products
