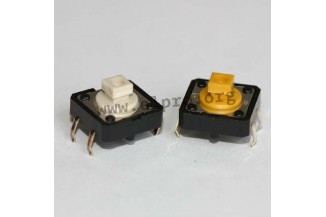

> Passive elements>Switches/keys>Tact switches>Omron tact switches, 12x12mm, B3F series

Manufacturers

dimensions: 12x12mm, 1 NO

* very high mechanical and electrical operating life
* jump contact mechanism with short contact travel
* flux proof, automatic soldering possible
* switching capacity, max.: 1...50mA/5...24V DC
* test voltage, 1min.: 500V AC...

dimensions: 12x12mm, 1 NO

* very high mechanical and electrical operating life
* jump contact mechanism with short contact travel
* flux proof, automatic soldering possible
* switching capacity, max.: 1...50mA/5...24V DC
* test voltage, 1min.: 500V AC
* switching type: 1 NO contact
* contact surface: silver-plated
* solder temperature, max.: 260°C, 5s
* operating temperature: -25...+70°C
* B3F-4000, B3F-4050: operating life: 3 Mio., 1.27N operating force
* B3F-4005, B3F-4055: operating life: 1 Mio., 2.55N operating force

> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Omron
    B 3 F-4000
    0,167 €
    12059 B 3 F-4000 B3F-4000 B3F-4000
    0,167 €

    More
    Stock: 9582
  • Omron
    B 3 F-4005
    0,207 €
    12060 B 3 F-4005 B3F-4005 B3F-4005
    0,207 €

    More
    Stock: 2073
  • Omron
    B3F-4050 and B3F-4055
    0,195 €
    12061 B 3 F-4050 B3F-4050 B3F-4050
    0,195 €

    More
    Stock: 1182
  • Omron
    B3F-4050 and B3F-4055
    0,177 €
    12062 B 3 F-4055 B3F-4055 B3F-4055
    0,177 €

    More
    Stock: 10100
Showing 1 - 4 of 4 products
