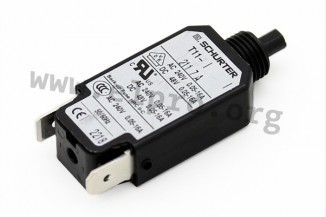

> Passive elements>Fuses>Circuit breakers>Schurter circuit breakers, thread-neck type, T11-211 series

Manufacturers

circuit breakers for equipment

* single pole thermal circuit breaker
* ideal as replacement for fuses, especially for higher rated current
* advantage of being immune to high inrush currents and line transients
* easy screw mounting 3/8–27UNS–2A, 6mm...

circuit breakers for equipment

* single pole thermal circuit breaker
* ideal as replacement for fuses, especially for higher rated current
* advantage of being immune to high inrush currents and line transients
* easy screw mounting 3/8–27UNS–2A, 6mm lenght
* quick connect terminals 6,3x0.8mm
* rated voltage:
120V/240V AC
24V/32V/48V DC
* conditional short circuit current (PC1, 240V AC): 2000A
* short circuit capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
* dielectric strenght: 4000V AC
* insulation resistance (500V DC): >100MΩ
* type of tripping: positively trip-free
* weight: 10g
