USB sockets

* 90° angled
* USB A- and USB B sockets and plugs for PCB
* solder version

USB A PC and USB B PC:
* USB A- and USB B sockets for PCB
* insulator: PBT
* contacts: Cu alloy
* rated voltage: 1A
* dielectric strength, 1 min.: 1000V AC
* insulation ...

USB sockets

* 90° angled
* USB A- and USB B sockets and plugs for PCB
* solder version

USB A PC and USB B PC:
* USB A- and USB B sockets for PCB
* insulator: PBT
* contacts: Cu alloy
* rated voltage: 1A
* dielectric strength, 1 min.: 1000V AC
* insulation resistance: >1000MΩ
* operating temperature: -55...+105°C

USB A PC LP:
* USB A jack connector, low profile, for PCB
* insulator: Nylon PA9T
* contacts: phosphor bronze
* rated current: 1.5A
* dielectric strength, 1 min.: 500V AC
* insulation resistance: >1000MΩ
* operating temperature: -55...+85°C

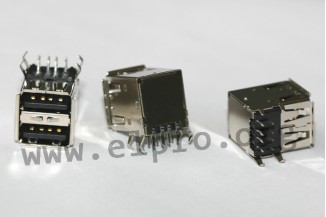

USB 2xA PC:
* USB A double connector for PCB
* insulator: PBT
* contacts: phosphor bronze
* rated current: 1.5A
* dielectric strength, 1 min.: 500V AC
* insulation resistance: >1000MΩ
* operating temperature: -55...+85°C

* 414-1-S-BS0: USB A double connector for PCB
* 415-2-S-BS0: USB A jack connector, low profile, for PCB
* 418-1-S-BS0: USB B sockets for PCB
* 4 poles
* insulation shell: thermoplast, UL94V-0
* contact material: phosphor bronze
* contact surface: Au-plated
* rated current: 0.5A
* rated voltage: 40VRMS/V DC
* dielectric strength (1Min.): 500VRMS
* temperature range: -25...+85°C
* short term (5s): +230°C
* by Garry

> More
Showing 1 - 6 of 6 products
  • Product Stock Unit price Volume discounts
  • Assmann WSW components
    USB A PC
    0,321 €
    16371 USB A PC A-USBSA A-USBSA
    0,321 €
    Stock: 15850
  • Assmann WSW components
    USB B PC
    0,423 €
    16383 USB B PC A-USBSB A-USBSB
    0,423 €
    Stock: 10908
  • Assmann WSW components
    USB A PC LP
    0,584 €
    16372 USB A PC LP A-USB A-LP-C A-USB A-LP-C
    0,584 €
    Stock: 774
  • Assmann WSW components
    USB 2xA PC
    0,861 €
    16370 USB 2xA PC A-USB A-2P-C A-USB A-2P-C
    0,861 €
    Stock: 2934
  • MPE Garry
    dimensions 414-1
    0,67 €
    39087 414-1-S-BS0 414-1-S-BS0
    0,67 €
    Stock: 0
  • MPE Garry
    dimensions 415-2
    1,16 €
    39086 415-2-S-BS0 415-2-S-BS0
    1,16 €
    Stock: 0
Showing 1 - 6 of 6 products
