Hahn flat transformers

Vacuum encapsulated flat transformers with 24VA, a UI 39 core and a two chamber winding. These transformers have a sparking/leakage distance of at least 10mm and are routine-tested with 6000V between primary and secondary wi...

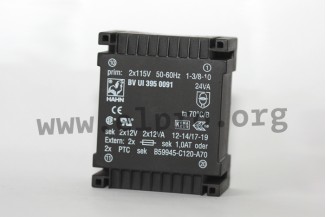

Hahn flat transformers

Vacuum encapsulated flat transformers with 24VA, a UI 39 core and a two chamber winding. These transformers have a sparking/leakage distance of at least 10mm and are routine-tested with 6000V between primary and secondary winding. They are not short circuit proof and are suitable for PCB mounting as well as for 115/230V power supplies. We offer the following types of this Hahn series: BV UI 395 0098, BV UI 395 0091 and BV UI 395 0083.

  • output: 24VA
  • core: UI 39
  • input voltage: 2x115V
  • not short circuit proof
