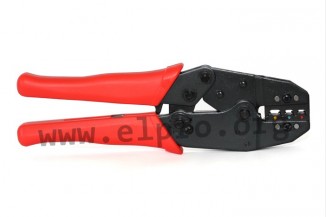

Crimping pliers for end sleeves, receptacles and crimping contacts

EWZ:

  • crimping pliers made of special steel, black burnished surface
  • all types except EWZ230C feature high transmission of force due to lever action, precision dies and integral loc...

Crimping pliers for end sleeves, receptacles and crimping contacts

EWZ:

  • crimping pliers made of special steel, black burnished surface
  • all types except EWZ230C feature high transmission of force due to lever action, precision dies and integral lock
  • easy to handle due to well formed PVC insulated grips
  • length: 220 mm

HT4362C and HT4362H:

  • universal crimping pliers for cables or terminals
  • with ratchet release and PP and TPR hand grip
  • made of oil-hardened and black oxide finished special steel
  • length: 220 mm

HTK6A02:

  • universal crimping pliers with diverse die sets
  • with an angle head with streamline ergonomic handle design
  • made of oil-hardened and black oxide finished special steel
  • length: 220 mm

Application:

  • EWZ 301 E for end sleeves, insulated and non-insulated crimping sleeves, for cables up 0.5 to 4mm² (AWG 22 bis 12)
  • EWZ 301 S for end sleeves, insulated and non-insulated crimping sleeves for cables up 6 to 16mm² (AWG 10 to 6)
  • EWZ 301 for insulated connectors and receptacles, for cables up 0.5 to 6mm² (AWG 22 to 10)
  • EWZ 230 C for non-insulated connectors and receptacles, for cables up 0.75 to 6mm² (AWG 20 to 10)
  • EWZ 301 U for non-insulated connectors and receptacles, for cables up 0.5 to 2.5mm² (AWG 22 to 14)
  • EWZ 225 D for non-Insulated connectors and receptacles as well as crimping contacts, for cables up 0.5 to 1mm² (AWG 22 to 18)
  • EWZ 202 B for IC pins, soldering-in pins and receptacles and non-insulated connectors
  • HT4362C for non-insulated and open barrel terminals, for cables with a cross section of 0,5 to 6,0mm²
  • HT4362H for insulated terminals, for cables with a cross section of 0,5 to 6,0mm²
  • HTK6A02 for non-insulated, insulated, D-Sub as well as open barrel terminals and for non-insulated ferrules, for cables with a cross section of 0,25 to 16,0mm²
> More
Showing 1 - 11 of 11 products
  • Product Stock Unit price Volume discounts
  • Hanlong Industrial
    EWZ 301 E
    22,29 €
    17258 EWZ 301 E HT-236E HT-236E
    22,29 €

    More
    Stock: 118
  • Hanlong Industrial
    EWZ 301 S
    22,29 €
    17260 EWZ 301 S HT-236E1 HT-236E1
    22,29 €

    More
    Stock: 7
  • Hanlong Industrial
    EWZ 301
    16,79 €
    17256 EWZ 301 HT-301 HT-301
    16,79 €

    More
    Stock: 0
  • Hanlong Industrial
    EWZ 230 C
    22,29 €
    17255 EWZ 230 C HT-236C HT-236C
    22,29 €

    More
    Stock: 9
  • Hanlong Industrial
    EWZ 301 U
    23,59 €
    17261 EWZ 301 U HT-236U HT-236U
    23,59 €

    More
    Stock: 3
  • Hanlong Industrial
    EWZ 225 D
    23,59 €
    17253 EWZ 225 D HT-225D HT-225D
    23,59 €

    More
    Stock: 5
  • Hanlong Industrial
    EWZ 202 B
    7,99 €
    17252 EWZ 202 B HT-202B HT-202B
    7,99 €

    More
    Stock: 75
  • Hanlong Industrial
    HT-2757C1, Hanlong crimping pliers, for end sleeves, receptacles and crimping contacts, HT series
    31,19 €
    245140 HT-2757C1 HT-2757C1
    31,19 €

    More
    Stock: 1
  • Hanlong Industrial
    HT-4362C
    35,39 €
    112281 HT-4362C HT-4362C
    35,39 €

    More
    Stock: 9
  • Hanlong Industrial
    HT-4362H
    35,39 €
    112282 HT-4362H HT-4362H
    35,39 €

    More
    Stock: 8
  • Hanlong Industrial
    HT-K6A02
    87,99 €
    112283 HT-K6A02 HT-K6A02
    87,99 €

    More
    Stock: 18
Showing 1 - 11 of 11 products
