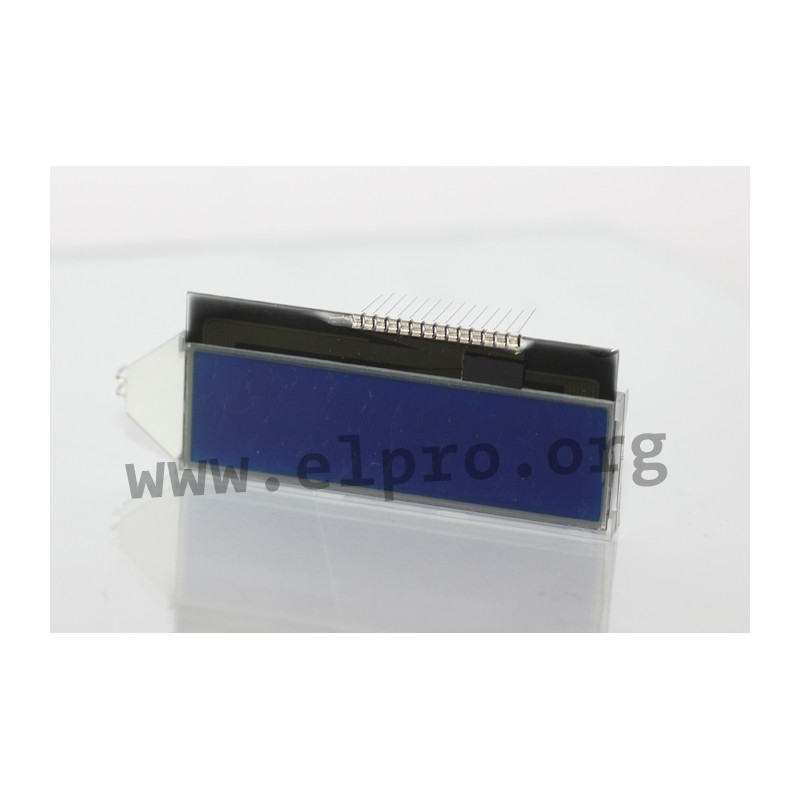

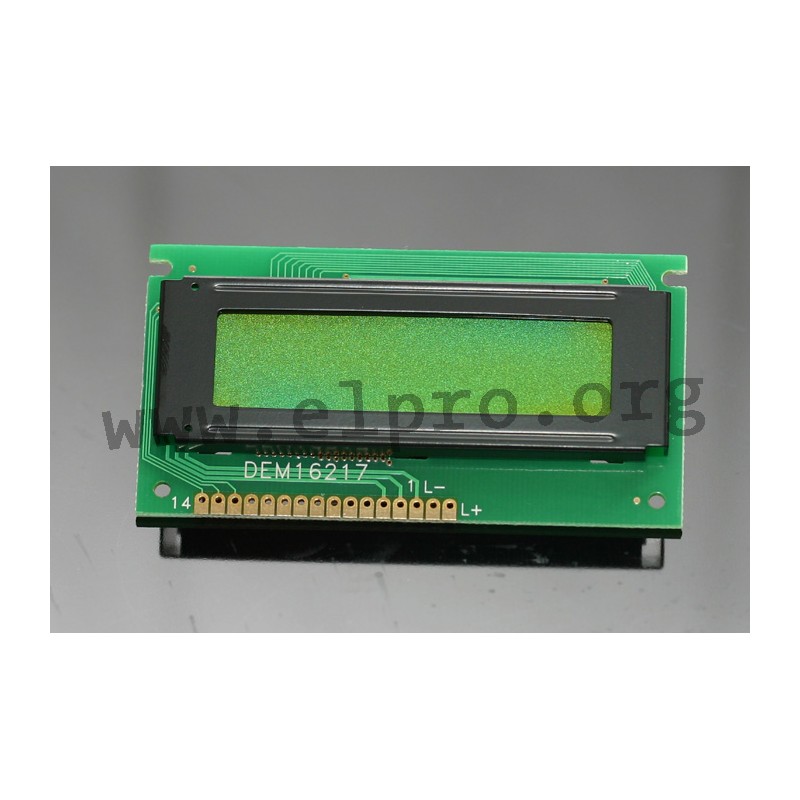

DEM 16217 SYH-PY

LCD dot matrix modules

• dot matrix modules with 2 lines and 16 characters
​• high contrast LCD-STN display
• LED backlight
• characters: black
• by Display Elektronik
• interface for 4- or 8-Bit data bus
• supply voltage: 5V
• operating temperature range: -20 to +70°C



DEM 16217 SYH-PY

DEM 16217 SYH-PY

8252 DEM 16217 SYH-PY DEM16217SYH-PY DEM16217SYH-PY LCD dot matrix modules. • dot matrix modules with 2 lines and 16 characters​• high contrast LCD-STN display• LED backlight• characters: black• by Display Elektronik• interface for 4- or 8-Bit data bus• supply voltage: 5V• operating temperature range: -20 to +70°C

Specifications

manufacturer
Manufacturer's name DEM16217SYH-PY
Character size [mm] 2,95x5,55
Background yellow/green
Illumination yellow
Lines 2
Characters 16
Field of view [mm] 61x15,8
Dimensions [mm] 88x44x10,5
Data Sheet

Unit price

11,39 €

Stock: 59
Next incoming goods:
CW 18/2024
525 units

Further delivery:
CW 19/2024
