Mean Well power supply series MSP-100

Switching power supplies in an enclosed design with 100W, a universal input, screw terminals and a low no-load power consumption when using remote control. These devices have a built-in active PFC function and...

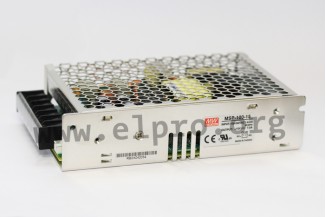

Mean Well power supply series MSP-100

Switching power supplies in an enclosed design with 100W, a universal input, screw terminals and a low no-load power consumption when using remote control. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical technology, comply with EN60601-1 (MOOP level) and can be switched on and off by a remote signal. We offer the following types of this Mean Well series: MSP-100-3.3, MSP-100-5, MSP-100-7.5, MSP-100-12, MSP-100-15, MSP-100-24, MSP-100-36 and MSP-100-48.

  • single output
  • output: 66 to 108W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 65A
  • leakage current earth: <300μA
  • leakage current touch: <100μA
  • output voltage adjustment: -5/+15%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +60°C
  • weight: 380g
> More
Download

Showing 1 - 8 of 8 items
  • article stock price volume discount
  • Mean Well
    Meanwell MSP-100 series
    43,30 €
    40179 MSP-100-3.3 MSP-100-3.3
    43,30 €
    20 pcs. / 38,30 €
    stock: 12
  • Mean Well
    MSP-100-5
    43,30 €
    40182 MSP-100-5 MSP-100-5
    43,30 €
    20 pcs. / 38,30 €
    stock: 6
  • Mean Well
    Meanwell MSP-100 series
    43,30 €
    40183 MSP-100-7.5 MSP-100-7.5
    43,30 €
    20 pcs. / 38,30 €
    stock: 11
  • Mean Well
    Series MSP-100 by Meanwell
    43,30 €
    40176 MSP-100-12 MSP-100-12
    43,30 €
    20 pcs. / 38,30 €
    stock: 27
  • Mean Well
    MSP-100-15
    43,30 €
    40177 MSP-100-15 MSP-100-15
    43,30 €
    20 pcs. / 38,30 €
    stock: 9
  • Mean Well
    MSP-100-24
    43,30 €
    40178 MSP-100-24 MSP-100-24
    43,30 €
    20 pcs. / 38,30 €
    stock: 32
  • Mean Well
    Meanwell MSP-100 series
    43,30 €
    40180 MSP-100-36 MSP-100-36
    43,30 €
    20 pcs. / 38,30 €
    stock: 12
  • Mean Well
    Meanwell MSP-100 series
    43,30 €
    40181 MSP-100-48 MSP-100-48
    43,30 €
    20 pcs. / 38,30 €
    stock: 3
Showing 1 - 8 of 8 items
