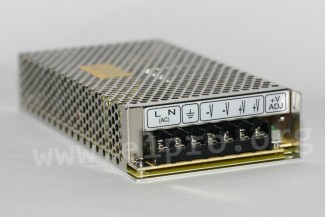

Mean Well power supply series RS-150

Switching power supplies in an enclosed housing with 150W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recover...

Mean Well power supply series RS-150

Switching power supplies in an enclosed housing with 150W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range 115V/230V and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-150-3.3, RS-150-5, RS-150-12, RS-150-15, RS-150-24 and RS-150-48.

  • single output
  • output: 99 to 158,4W
  • input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g
> More
Data Sheet
Showing 1 - 6 of 6 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    Meanwell RS-150 series
    21,39 €
    17977 PSAIG 3,3V 30A G3 RS-150-3.3 RS-150-3.3
    21,39 €
    Quantity Unit price
    50 + 19,99 €
    Stock: 45
  • Mean Well
    dimensions and terminal pin assignment
    18,99 €
    18002 PSAIG 5V 26A G3 RS-150-5 RS-150-5
    18,99 €
    Quantity Unit price
    50 + 17,89 €
    Stock: 699
  • Mean Well
    dimensions and terminal pin assignment
    18,99 €
    17923 PSAIG 12V 12,5A G3 RS-150-12 RS-150-12
    18,99 €
    Quantity Unit price
    50 + 17,89 €
    Stock: 774
  • Mean Well
    dimensions and terminal pin assignment
    20,29 €
    17944 PSAIG 15V 10A G3 RS-150-15 RS-150-15
    20,29 €
    Quantity Unit price
    50 + 18,89 €
    Stock: 296
  • Mean Well
    Meanwell RS-150 series
    18,39 €
    17970 PSAIG 24V 6,5A G3 RS-150-24 RS-150-24
    18,39 €
    Quantity Unit price
    50 + 17,29 €
    Stock: 1272
  • Mean Well
    dimensions and terminal pin assignment
    18,99 €
    17991 PSAIG 48V 3,3A G3 RS-150-48 RS-150-48
    18,99 €
    Quantity Unit price
    50 + 17,89 €
    Stock: 163
Showing 1 - 6 of 6 products
