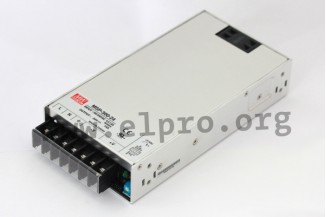

Mean Well power supply series MSP-300

Switching power supplies in an enclosed housing with 300W, a universal input, a fan, screw terminals, a DC OK signal, a low no-load power, a built-in auxiliary power (standby, 5V/0,3A), a built-in remote sense function and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (MOOP level) and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MSP-300-3.3, MSP-300-5, MSP-300-7.5, MSP-300-12, MSP-300-15, MSP-300-24, MSP-300-36 and MSP-300-48.

single output
output: 198 to 336W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 70A
leakage current: <450µA (earth) / <100µA (touch)
output voltage adjustment: ±10%
overload protection: 105 to 135%
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +70°C
weight: 950g
