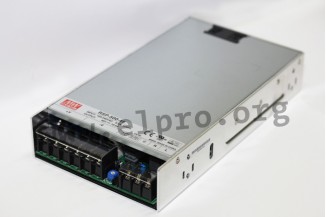

Mean Well power supply series RSP-500

Switching power supplies in an enclosed housing with 500W, a DC fan, screw terminals, a built-in remote sense function, a low profile (1U) and a unviersal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-500-3.3, RSP-500-4, RSP-500-5, RSP-500-12, RSP-500-15, RSP-500-24, RSP-500-27 and RSP-500-48.

single output
output: 297 to 504W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 40A
leakage current: <2mA
output voltage adjustment: -5/+10%
overload protection: 105 to 130%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 1300g
