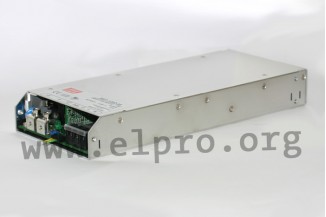

Mean Well power supply series RSP-1000

These power supplies in enclosed case are destined for control cabin applications (1U) due to their compact size. They also have a built-in fan, screw terminals, a built-in active PFC function, a universal in...

Mean Well power supply series RSP-1000

These power supplies in enclosed case are destined for control cabin applications (1U) due to their compact size. They also have a built-in fan, screw terminals, a built-in active PFC function, a universal input, a DC OK signal as well as protections against overload by current limiting (auto recovery), short circuit and overvoltage. On/Off switching of the output voltage can be controlled by a built-in remote signal. The devices are working with a built-in auxiliary power of 5V/0.5A and offer a parallel function with active current sharing of up to 4000W (3+1 units). There is also a built-in remote sense function for correct voltage at load. We offer the types RSP-1000-12, RSP-1000-15, RSP-1000-24, RSP-1000-27 and RSP-1000-48 by manufacturer Mean Well.

  • single output
  • output: 720 to 1008W
  • input voltage: 90 to 264 V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 2mA
  • output voltage adjustment: 127 to 370V DC
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1950g
> More
Download

Showing 1 - 5 of 5 items
  • article stock price volume discount
  • Mean Well
    MeanWell RSP-1000 series
    205,30 €
    29364 RSP-1000-12 RSP-1000-12
    205,30 €
    20 pcs. / 181,50 €
    stock: 52
  • Mean Well
    RSP-1000-15, Mean Well switching power supplies, 1000W, 19", RSP-1000 series
    205,30 €
    123954 RSP-1000-15 RSP-1000-15
    205,30 €
    20 pcs. / 181,50 €
    stock: 12
  • Mean Well
    MeanWell RSP-1000 series
    205,30 €
    29365 RSP-1000-24 RSP-1000-24
    205,30 €
    20 pcs. / 181,50 €
    stock: 222
  • Mean Well
    MeanWell RSP-1000 series
    205,30 €
    111632 RSP-1000-27 RSP-1000-27
    205,30 €
    20 pcs. / 181,50 €
    stock: 34
  • Mean Well
    RSP-1000-48
    205,30 €
    29363 RSP-1000-48 RSP-1000-48
    205,30 €
    20 pcs. / 181,50 €
    stock: 356
