Mean Well power supply series RST-5000

Switching power supplies in an enclosed housing with a built-in fan, screw terminals, a 3 phase AC input, a parallel function and a built-in auxiliary power. They have a built-in active PFC function and are p...

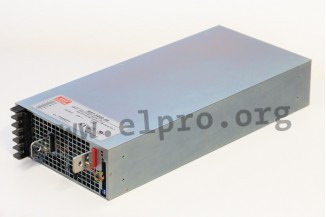

Mean Well power supply series RST-5000

Switching power supplies in an enclosed housing with a built-in fan, screw terminals, a 3 phase AC input, a parallel function and a built-in auxiliary power. They have a built-in active PFC function and are protected against overload by current limiting (auto recovery), short circuit, overload, overvoltage, overtemperature as well as fan fail. An active current sharing of up to 15 kW (2+1 units) is possible. Sensor connections ensure a correct setting of the voltage on the load. On/off control of the output voltage by a remote sense function. We offer the following types of this Mean Well series: RST-5000-24, RST-5000-36 and RST-5000-48.

  • single output
  • output: 4800 to 5040W
  • input voltage: 3x 3-wire 196 to 305V AC (47 to 63Hz)
  • input voltage: 3x 4-wire 340 to 530V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • maximal leakage current: 3,5mA
  • output voltage adjustment: -2/+20%
  • overload protection: 100 bis 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 bis +70°C
  • weight: 10000g
> More
Download

Showing 1 - 3 of 3 items
  • article stock price volume discount
  • Mean Well
    RST-5000-24
    1 065,40 €
    44956 RST-5000-24 RST-5000-24
    1 065,40 €
    20 pcs. / 942,00 €
    stock: 18
  • Mean Well
    RST-5000-36, Mean Well switching power supplies, 5000W, parallel function, RST-5000 series
    1 065,40 €
    123923 RST-5000-36 RST-5000-36
    1 065,40 €
    20 pcs. / 942,00 €
    stock: 3
  • Mean Well
    RST-5000-48
    1 065,40 €
    44957 RST-5000-48 RST-5000-48
    1 065,40 €
    20 pcs. / 942,00 €
    stock: 16
Showing 1 - 3 of 3 items
