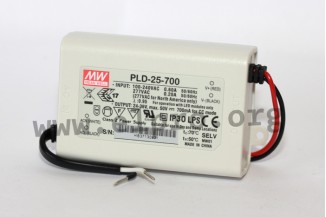

Mean Well LED driver series PLD-25

LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PLD-25-350, PLD-25-700, PLD-25-1050 and PLD-25-1400.

single output
output: 20,3 to 25,2W
input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
maximal input inrush current: 25A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -30 to +60°C
dimensions: 84x57x29,5mm
weight: 190g

> More

Data Sheet
