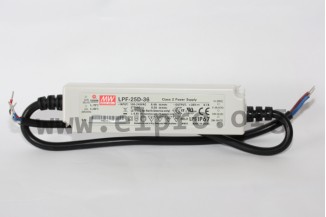

Mean Well power supply series LPF-25D

These power units are dimmable and suited for indoor and outdoor LED and illumination applications (IP67). They conform UL1310, Class II. Facilities: universal input, constant current, fixed output voltage, bu...

Mean Well power supply series LPF-25D

These power units are dimmable and suited for indoor and outdoor LED and illumination applications (IP67). They conform UL1310, Class II. Facilities: universal input, constant current, fixed output voltage, built-in active PFC function and protections against short circuit, overvoltage and overload by current limiting (auto recovery). We offer the following types by manufacturer Mean Well: LPF-25D-12, LPF-25D-15, LPF-25D-20, LPF-25D-24, LPF-25D-30, LPF-25D-36, LPF-25D-42, LPF-25D-48 and LPF-25D-54.

* built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer)
* output: 25 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* 60 to 100% output constant current range
* maximal input inrush current: 50A
* 95 to 108% overload protection
* I/P-O/P, withstand voltage: 3750 V AC
* operating temperature: -40 to +70 °C
* by Mean Well
* weight: 0.36 kg

> More
Download

Showing 1 - 9 of 9 items
  • article stock price volume discount
  • MeanWell
    LPF-25D-12
    19,10 €
    36526 LPF-25D-12 LPF-25D-12
    19,10 €
    20 pcs. / 16,90 €
    stock: 142
  • MeanWell
    LPF-25D-15
    19,10 €
    36530 LPF-25D-15 LPF-25D-15
    19,10 €
    20 pcs. / 16,90 €
    stock: 10
  • MeanWell
    LPF-25D-20
    19,10 €
    36528 LPF-25D-20 LPF-25D-20
    19,10 €
    20 pcs. / 16,90 €
    stock: 12
  • MeanWell
    LPF-25D-24
    19,10 €
    36527 LPF-25D-24 LPF-25D-24
    19,10 €
    20 pcs. / 16,90 €
    stock: 239
  • MeanWell
    LPF-25D-30
    19,10 €
    36524 LPF-25D-30 LPF-25D-30
    19,10 €
    20 pcs. / 16,90 €
    stock: 40
  • MeanWell
    LPF-25D-36
    19,10 €
    36529 LPF-25D-36 LPF-25D-36
    19,10 €
    20 pcs. / 16,90 €
    stock: 0
  • MeanWell
    LPF-25D-42
    19,10 €
    36522 LPF-25D-42 LPF-25D-42
    19,10 €
    20 pcs. / 16,90 €
    stock: 23
  • MeanWell
    LPF-25D-48
    19,10 €
    36523 LPF-25D-48 LPF-25D-48
    19,10 €
    20 pcs. / 16,90 €
    stock: 15
  • MeanWell
    LPF-25D-54
    19,10 €
    36525 LPF-25D-54 LPF-25D-54
    19,10 €
    20 pcs. / 16,90 €
    stock: 40
Showing 1 - 9 of 9 items
