Mean Well LED driver series PLP-30

LED drivers with a constant current / constant voltage, a universal input and 30W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61000-3-2 Class C, EN55015, EN61347-...

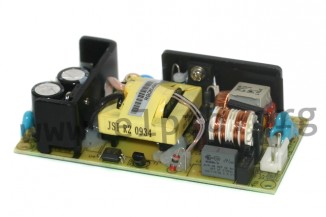

Mean Well LED driver series PLP-30

LED drivers with a constant current / constant voltage, a universal input and 30W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-30-12, PLP-30-24 and PLP-30-48.

  • single output
  • output: 30,24 to 31,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 101,16x50,8x26,6mm
  • weight: 120g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    Meanwell PLP-30 series
    14,49 €
    35138 PLP-30-12 PLP-30-12
    14,49 €
  • Mean Well
    PLP-30-24
    11,89 €
    35137 PLP-30-24 PLP-30-24
    11,89 €
    Quantity Unit price
    50 + 11,09 €
    Stock: 20
  • Mean Well
    PLP-30-48
    11,89 €
    35136 PLP-30-48 PLP-30-48
    11,89 €
    Quantity Unit price
    50 + 11,09 €
    Stock: 8
Showing 1 - 3 of 3 products
