Mean Well LED power supply series HLN-60

The power supplies are suited for LED and illumination applications in indoor and outdoor areas (IP64) without direct sun exposure (not UV resistant). Output voltage and output current are adjustable. The d...

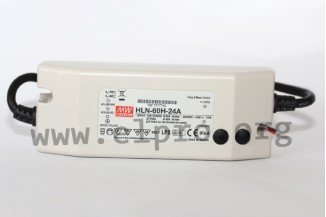

Mean Well LED power supply series HLN-60

The power supplies are suited for LED and illumination applications in indoor and outdoor areas (IP64) without direct sun exposure (not UV resistant). Output voltage and output current are adjustable. The devices have a plastic case, universal input, built-in active PFC function and are protected against short circuit, overvoltage and overload by current limiting (auto recovery). We offer the following types by manufacturer Mean Well: HLN-60H-15A, HLN-60H-20A, HLN-60H-24A, HLN-60H-30A, HLN-60H-36A, HLN-60H-42A, HLN-60H-48A and HLN-60H-54A

* output: 60 to 62 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz),
* maximal input inrush current: 55A
* 95 to 108% overcurrent protection
* I/P-O/, withstand voltage: 3750 V AC
* I/P-FG, withstand voltage: 1880 V AC
* O/P-FG, withstand voltage: 500 V AC
* operating temperature: -40 to +50°C
* by Mean Well
* weight: 460g

> More
Download

Showing 1 - 8 of 8 items
  • article stock price volume discount
  • MeanWell
    HLN-60H-15A
    28,20 €
    36092 HLN-60H-15A HLN-60H-15A
    28,20 €
    20 pcs. / 24,90 €
    stock: 24
  • MeanWell
    HLN-60H-20A
    28,20 €
    36089 HLN-60H-20A HLN-60H-20A
    28,20 €
    20 pcs. / 24,90 €
    stock: 33
  • MeanWell
    HLN-60H-24A
    28,20 €
    36093 HLN-60H-24A HLN-60H-24A
    28,20 €
    20 pcs. / 24,90 €
    stock: 38
  • MeanWell
    HLN-60H-30A
    28,20 €
    36088 HLN-60H-30A HLN-60H-30A
    28,20 €
    20 pcs. / 24,90 €
    stock: 33
  • MeanWell
    HLN-60H-36A
    28,20 €
    36094 HLN-60H-36A HLN-60H-36A
    28,20 €
    20 pcs. / 24,90 €
    stock: 3
  • MeanWell
    HLN-60H-42A
    28,20 €
    36087 HLN-60H-42A HLN-60H-42A
    28,20 €
    20 pcs. / 24,90 €
    stock: 15
  • MeanWell
    HLN-60H-48A
    28,20 €
    36091 HLN-60H-48A HLN-60H-48A
    28,20 €
    20 pcs. / 24,90 €
    stock: 10
  • MeanWell
    HLN-60H-54A
    28,20 €
    36090 HLN-60H-54A HLN-60H-54A
    28,20 €
    20 pcs. / 24,90 €
    stock: 5
Showing 1 - 8 of 8 items
