Mean Well LED driver series HLG-60H

LED drivers in a metal case (IP67) wth 60W, a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a wide input range. These SELV compliant devices have a built-in active PFC...

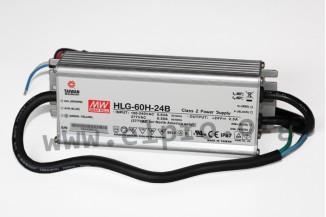

Mean Well LED driver series HLG-60H

LED drivers in a metal case (IP67) wth 60W, a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a wide input range. These SELV compliant devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lightning applications and comply with EN61347-1, EN61347-2-13, EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-60H-15B, HLG-60H-20B, HLG-60H-24B, HLG-60H-30B, HLG-60H-36B, HLG-60H-42B, HLG-60H-48B and HLG-60H-54B.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 730g
> More
Download

Showing 1 - 8 of 8 items
  • article stock price volume discount
  • Mean Well
    HLG-60H-15B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135782 HLG-60H-15B HLG-60H-15B
    28,20 €
    20 pcs. / 24,90 €
    stock: 20
  • Mean Well
    HLG-60H-20B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135784 HLG-60H-20B HLG-60H-20B
    28,20 €
    20 pcs. / 24,90 €
    stock: 19
  • Mean Well
    HLG-60H-24B
    28,20 €
    37941 HLG-60H-24B HLG-60H-24B
    28,20 €
    20 pcs. / 24,90 €
    stock: 656
  • Mean Well
    HLG-60H-30B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135787 HLG-60H-30B HLG-60H-30B
    28,20 €
    20 pcs. / 24,90 €
    stock: 20
  • Mean Well
    HLG-60H-36B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    111214 HLG-60H-36B HLG-60H-36B
    28,20 €
    20 pcs. / 24,90 €
    stock: 20
  • Mean Well
    HLG-60H-42B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135790 HLG-60H-42B HLG-60H-42B
    28,20 €
    20 pcs. / 24,90 €
    stock: 19
  • Mean Well
    HLG-60H-48B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135792 HLG-60H-48B HLG-60H-48B
    28,20 €
    20 pcs. / 24,90 €
    stock: 20
  • Mean Well
    HLG-60H-54B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series
    28,20 €
    135794 HLG-60H-54B HLG-60H-54B
    28,20 €
    20 pcs. / 24,90 €
    stock: 20
Showing 1 - 8 of 8 items
