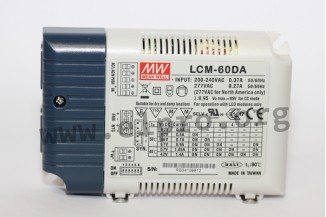

Mean Well LED driver series LCM-60

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II and 60W. These devices are protected against overtemperature, short circuit, overload (auto reco...

Mean Well LED driver series LCM-60

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II and 60W. These devices are protected against overtemperature, short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED lightning applications and have a dimmung function (dim-to-off) as well as a built-in active PFC function. We offer the following types of this Mean Well series: LCM-60, LCM-60DA and LCM-60DA2.

  • single output
  • output: 60,3W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
  • constant current selectable through a DIL switch:
    • 2 to 90V UA (600mA IA)
    • 2 to 86V UA (700mA IA)
    • 2 to 67V UA (900mA IA)
    • 2 to 57V UA (1050mA IA)
    • 2 to 42V UA (1400mA IA)

Matching synchronisation cables

> More
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    Meanwell LCM-60 series
    24,59 €
    38729 LCM-60 LCM-60
    24,59 €
    Quantity Unit price
    50 + 23,09 €
    Stock: 1755
  • Mean Well
    LCM-60DA
    29,19 €
    38730 LCM-60DA LCM-60DA
    29,19 €
    Quantity Unit price
    50 + 27,39 €
    Stock: 1119
  • Mean Well
    LCM-60EO
    48,09 €
    111899 LCM-60EO LCM-60EO
    48,09 €
  • Mean Well
    LCM-60DA2, Mean Well LED drivers, 60W, IP20, constant current, dimmable, DALI interface, LCM-60 series
    31,59 €
    236164 LCM-60DA2 LCM-60DA2
    31,59 €
    Quantity Unit price
    50 + 29,59 €
    Stock: 163
Showing 1 - 4 of 4 products
