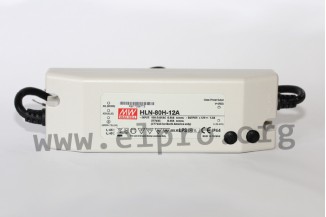

LED power supply HLN-80H by Meanwell

These power supplies in plastic enclosure are destined for LED and illumination applications in indoor and outdoor areas (IP64) without direct sun exposure (not UV resistant). Output voltage and output current ...

LED power supply HLN-80H by Meanwell

These power supplies in plastic enclosure are destined for LED and illumination applications in indoor and outdoor areas (IP64) without direct sun exposure (not UV resistant). Output voltage and output current are adjustable. The devoces are endued with universal input, built-in active PFC function and protections against short circuit, overvoltage and overload by current limiting (auto recovery). We offer the following types by manufacturer Mean Well: HLN-80H-12A, HLN-80H-15A, HLN-80H-20A, HLN-80H-24A, HLN-80H-30A, HLN-80H-36A, HLN-80H-42A, HLN-80H-48A and HLN-80H-54A.

* output: 80 to 82 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* maximal input inrush current: 70A
* 95 to 108% overcurrent protection
* I/P-O/P, withstand voltage: 3750 V AC
* I/P-FG, withstand voltage: 1880 V AC
* O/P-FG, withstand voltage: 500 V AC
* operating temperature: -40 to +50 °C
* by Mean Well
* weight: 0.5kg

> More
Download

Showing 1 - 7 of 7 items
  • article stock price volume discount
  • MeanWell
    HLN-80H-12A
    36,80 €
    36100 HLN-80H-12A HLN-80H-12A
    36,80 €
    20 pcs. / 32,60 €
    stock: 23
  • MeanWell
    HLN-80H-15A
    36,80 €
    36097 HLN-80H-15A HLN-80H-15A
    36,80 €
    20 pcs. / 32,60 €
    stock: 12
  • MeanWell
    HLN-80H-20A
    36,80 €
    36099 HLN-80H-20A HLN-80H-20A
    36,80 €
    20 pcs. / 32,60 €
    stock: 12
  • MeanWell
    HLN-80H-24A
    36,80 €
    36096 HLN-80H-24A HLN-80H-24A
    36,80 €
    20 pcs. / 32,60 €
    stock: 31
  • MeanWell
    HLN-80H-30A
    36,80 €
    36098 HLN-80H-30A HLN-80H-30A
    36,80 €
    20 pcs. / 32,60 €
    stock: 3
  • MeanWell
    HLN-80H-36A
    36,80 €
    36101 HLN-80H-36A HLN-80H-36A
    36,80 €
    20 pcs. / 32,60 €
    stock: 7
  • MeanWell
    HLN-80H-48A
    36,80 €
    36102 HLN-80H-48A HLN-80H-48A
    36,80 €
    20 pcs. / 32,60 €
    stock: 7
Showing 1 - 7 of 7 items
