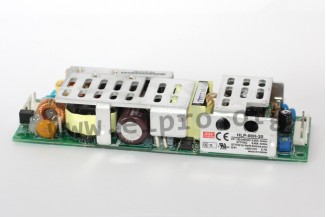

LED power supply HLP-80H by Meanwell

These power supplies in open frame are destined for LED and illumination applications in indoor and outdoor areas. Output voltage and output current are adjustable. The devices are dimmable via built-in 3 in 1 ...

LED power supply HLP-80H by Meanwell

These power supplies in open frame are destined for LED and illumination applications in indoor and outdoor areas. Output voltage and output current are adjustable. The devices are dimmable via built-in 3 in 1 dimming function (external voltage 1 up to 10V DC, PWM, potentiometer). Further facilities: universal input, built-in active PFC function and protections against short circuit, overvoltage and overload by current limiting (auto recovery). We offer the following types by Mean Well: HLP-80H-12, HLP-80H-15, HLP-80H-20, HLP-80H-24, HLP-80H-30, HLP-80H-36, HLP-80H-42, HLP-80H-48 and HLP-80H-54

* output: 60 to 82.8 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* maximal input inrush current: 70A
* 95 to 108% overload protection
* I/P-O/P, withstand voltage: 3750 V AC
* I/P-FG, withstand voltage: 2000 V AC
* O/P-FG, withstand voltage: 500 V AC
* operating temperature: -40 to +70 °C
* by Mean Well
* weight: 0.27 kg

> More
Download

Showing 1 - 9 of 9 items
  • article stock price volume discount
  • Mean Well
    HLP-80H-12
    29,30 €
    36230 HLP-80H-12 HLP-80H-12
    29,30 €
    20 pcs. / 26,00 €
    stock: 6
  • Mean Well
    HLP-80H-15
    29,30 €
    36226 HLP-80H-15 HLP-80H-15
    29,30 €
    20 pcs. / 26,00 €
    stock: 1
  • Mean Well
    HLP-80H-20
    29,30 €
    36229 HLP-80H-20 HLP-80H-20
    29,30 €
    20 pcs. / 26,00 €
    stock: 12
  • Mean Well
    HLP-80H-24
    29,30 €
    36233 HLP-80H-24 HLP-80H-24
    29,30 €
    20 pcs. / 26,00 €
    stock: 93
  • Mean Well
    HLP-80H-30
    29,30 €
    36225 HLP-80H-30 HLP-80H-30
    29,30 €
    20 pcs. / 26,00 €
    stock: 5
  • Mean Well
    HLP-80H-36
    29,30 €
    36227 HLP-80H-36 HLP-80H-36
    29,30 €
    20 pcs. / 26,00 €
    stock: 35
  • Mean Well
    HLP-80H-42
    29,30 €
    36231 HLP-80H-42 HLP-80H-42
    29,30 €
    20 pcs. / 26,00 €
    stock: 43
  • Mean Well
    HLP-80H-48
    29,30 €
    36228 HLP-80H-48 HLP-80H-48
    29,30 €
    20 pcs. / 26,00 €
    stock: 13
  • Mean Well
    HLP-80H-54
    29,30 €
    36232 HLP-80H-54 HLP-80H-54
    29,30 €
    20 pcs. / 26,00 €
    stock: 12
Showing 1 - 9 of 9 items
