Mean Well DIN rail power supply series SDR-960

Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, an LED indicator for power on, a parallel function (3+1, 3840W), a universal input and screw termina...

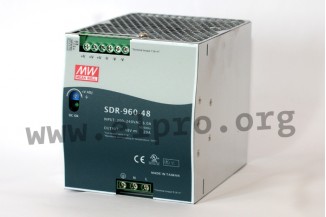

Mean Well DIN rail power supply series SDR-960

Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, an LED indicator for power on, a parallel function (3+1, 3840W), a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design, a high efficiency and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3, EN61000-3-2 as well as EN61000-3-3. We offer the following type of this Mean Well series: SDR-960-24 and SDR-960-48.

  • single output
  • output: 960W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 50A
  • peak power: 1248W (3s)
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 2470g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    SDR-960-24
    204,89 €
    39097 SDR-960-24 SDR-960-24
    204,89 €
    Quantity Unit price
    50 + 199,59 €

    More
    Stock: 263
  • Mean Well
    SDR-960-48
    204,89 €
    39098 SDR-960-48 SDR-960-48
    204,89 €
    Quantity Unit price
    50 + 199,59 €

    More
    Stock: 295
