industrial timer 10-16A, 83 by Finder

* series: 83
* contact
83.01_, 83.11_: SPDT
83.02_: DPDT
* multifunction with 8 settings or monofunction
* multivoltage from 24...240V AC
* automatic voltage adjustment by pulse width modulation (PWM)
* 8 over-lappin...

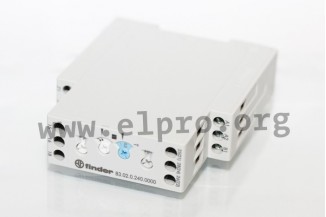

industrial timer 10-16A, 83 by Finder

* series: 83
* contact
83.01_, 83.11_: SPDT
83.02_: DPDT
* multifunction with 8 settings or monofunction
* multivoltage from 24...240V AC
* automatic voltage adjustment by pulse width modulation (PWM)
* 8 over-lapping adjustable time scales from 0,05s to 10h
* 83.02: time delayed and immediately contact
* setting/operating element screwdriver adjustable
* for 35mm rail (DIN EN 60715 TH35) mount
* category of protection IP20
* contact material: AgNi
* rated current
83.01_, 83.11_: 16A
83.02_: 12A
* max. switching current: 30A
* max. switching voltage: 400V AC
* max. switching power
83.01_, 83.11_: 4000VA
83.02_: 3000VA
* recovery time: 200ms
* lifetime, electrical
83.01_, 83.11_: 50x103 operations
83.02_: 60x103 operations
* operating temperature: -20...+60°C
* by Finder

* timer functions 83.01_/83.02_:
on-delay
interval
pulse delayed (0.5s)
symmetrical flasher (starting pulse on)
off-delay with control signal
on- and off-delay with control signal
interval with control signal on
watchdog (retriggerable interval with control signal on)

* timer functions 83.11_:
on-delay

> More
