Mean Well LED driver series HLG-40H

LED drivers in an aluminium housing (IP67) with a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 40W. These SELV compliant devices are pr...

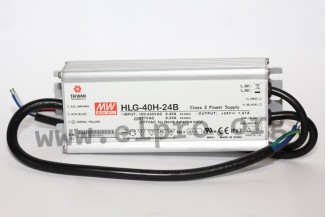

Mean Well LED driver series HLG-40H

LED drivers in an aluminium housing (IP67) with a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 40W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a control line as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-40H-12B, HLG-40H-15B, HLG-40H-20B, HLG-40H-24B, HLG-40H-30B, HLG-40H-36B, HLG-40H-42B, HLG-40H-48B and HLG-40H-54B.

  • single output
  • output: 39,96 to 40,5W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 171x61,5x36,8mm
  • weight: 730g
> More
Data Sheet
Showing 1 - 9 of 9 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLG-40H-12B
    28,89 €
    104543 HLG-40H-12B HLG-40H-12B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 45
  • Mean Well
    HLG-40H-15B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135768 HLG-40H-15B HLG-40H-15B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 9
  • Mean Well
    HLG-40H-20B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135770 HLG-40H-20B HLG-40H-20B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 14
  • Mean Well
    Mean Well HLG-40H-_B series
    26,79 €
    104544 HLG-40H-24B HLG-40H-24B
    26,79 €
    Quantity Unit price
    50 + 25,09 €
    Stock: 297
  • Mean Well
    HLG-40H-30B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135773 HLG-40H-30B HLG-40H-30B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 18
  • Mean Well
    HLG-40H-36B
    28,89 €
    104545 HLG-40H-36B HLG-40H-36B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 6
  • Mean Well
    HLG-40H-42B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135776 HLG-40H-42B HLG-40H-42B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 7
  • Mean Well
    HLG-40H-48B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135778 HLG-40H-48B HLG-40H-48B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 68
  • Mean Well
    HLG-40H-54B, Mean Well LED switching power supplies, 40W, IP67, dimmable, HLG-40H series
    28,89 €
    135780 HLG-40H-54B HLG-40H-54B
    28,89 €
    Quantity Unit price
    50 + 26,89 €
    Stock: 19
Showing 1 - 9 of 9 products
